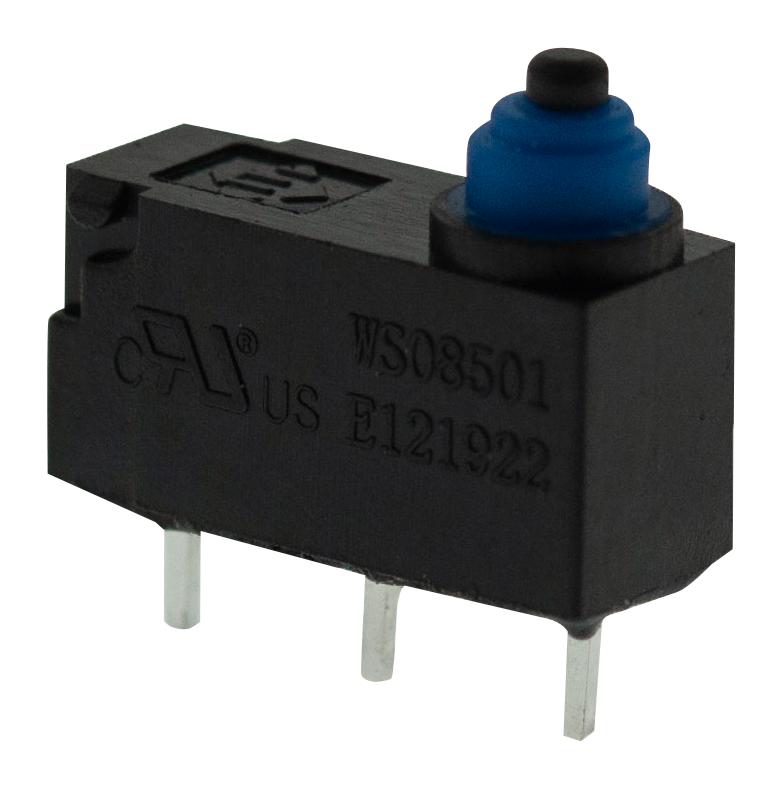

E-SWITCH WS0850100F070SA Industrial Snap Switch
The WS0850100F070SA from E-Switch is a durable, IP67-rated snap action switch designed for industrial and automation applications. It features a SPDT contact configuration, rated at 1A at 24VDC, with a pin plunger actuator and solder terminal connections. With an operational force of 70 grams, it boasts an electrical life of 10,000 cycles and a mechanical life of 1,000,000 cycles. The switch supports a wide operating temperature range of -25°C to 85°C, offers a contact resistance of 100 milliohms, and withstands dielectric strength of 600VAC. It’s ideal for HVAC, household appliances, vending, and process control industries.
E-SWITCH WS0850100F070SA Industrial Snap Switch Specifications:
- Contact Rating: 1A @ 24VDC
- Electrical Life: 10,000 Cycles
- Mechanical Life: 1,000,000 Cycles
- Contact Resistance: 100mΩ Max.
- Insulation Resistance: 100MQ Min. @ 500VDC
- Dielectric Strength: 600VAC
- Operating Temperature: -25°C to 85°C
- Ingress Protection: IP67
- Contact Arrangement: SPDT
- Actuation Force: 70 grams
- Terminals: Solder
- Material: Metal Components
- Mounting Type: Panel Mount
- Size: Compact, industrial form factor
Buy the E-Switch Series WS Switch: WS0850100F070SA
Purchase the E-Switch WS0850100F070SA online today and ensure your automation and control systems operate seamlessly. This IP67-rated SPDT switch offers a robust design with a 1A contact rating at 24VDC, ideal for harsh environments like HVAC, vending machines, and medical equipment. Its long electrical and mechanical lifespan guarantees durable performance, making it a valuable component for various industrial applications. Order now to enhance your system’s reliability and enjoy fast, secure online checkout with prompt delivery.
Buy E-Switch WS0850100F070SA now and experience unmatched reliability and performance in automation and industrial controls.
Frequently Asked Questions
Where can I buy E-SWITCH WS0850100F070SA?
You can click on the BUY or RFQ button to purchase WS0850100F070SA from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part WS0850100F070SA?
You can download the WS0850100F070SA datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of WS0850100F070SA?
E-SWITCH
