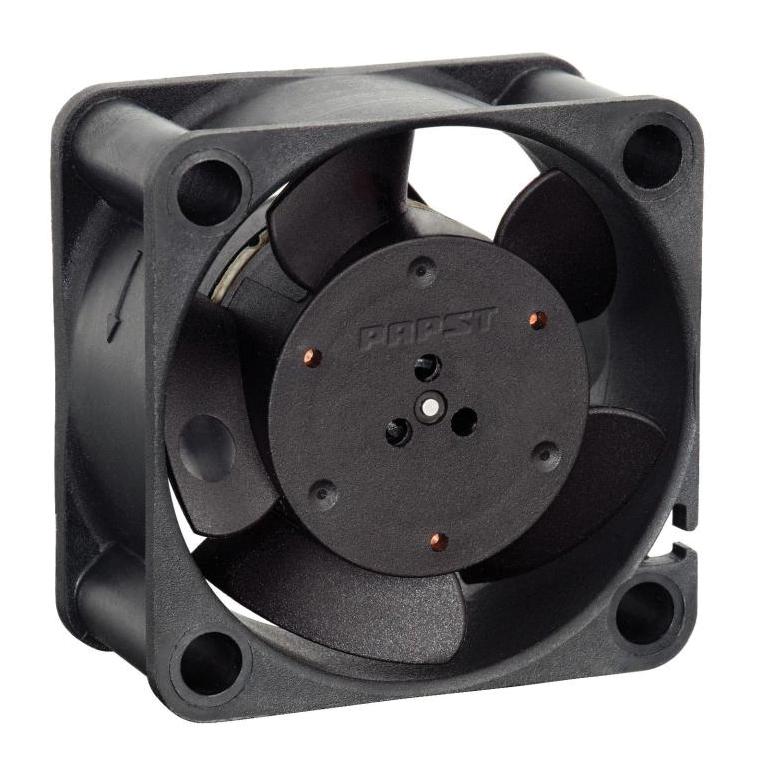

ebm-papst 414J2HH Axial Fan
The fan model 414 J/2HH is a compact, high-performance axial fan designed for industrial applications. Made with a plastic housing and impeller, it features a ball bearing system for durability. The fan operates at a nominal voltage of 24V with a power consumption of 2W at free air flow, reaching speeds up to 13,000 RPM. It supports a maximum airflow of 24 m³/h and a static pressure of 215 Pa. Suitable for sheltered environments, it includes a tacho signal output for speed monitoring and protected against electrical faults. Its reliable design ensures long operational life in ventilation and cooling systems, with compliance to safety standards including UL and CE.
ebm-papst 414J2HH Axial Fan Specifications:
- Width: 40.0 mm
- Height: 40.0 mm
- Depth: 25.0 mm
- Mass: 0.050 kg
- Housing Material: Plastic
- Impeller Material: Plastic
- Bearing System: Ball bearing
- Voltage Range: 18V to 27V
- Nominal Voltage: 24V
- Power Consumption: 2W at free air flow
- Current Consumption: 110 mA at 18V, 150 mA at 24V, 165 mA at 27V
- Speed: 10,200 RPM at 18V, 13,000 RPM at 24V, 14,100 RPM at 27V
- Max Airflow: 24 m³/h
- Static Pressure: 215 Pa
- Rotating Direction: Counterclockwise
- Air Outlet: Over struts
- Electrical Connection: Wires with 310 mm length
- Tacho Signal Output: 2 pulses per revolution, 433 Hz maximum frequency
- Housing and impeller: Plastic
- Suitable for sheltered environments, with a lifespan of approximately 57,500 hours at 40°C, UL, CE, and VDE certified
Buy the EBM Papst 414J2HH – Reliable Axial Fan for Industrial Applications
Order the EBMPAPST 414J2HH axial fan online now to ensure efficient airflow and reliable performance in your industrial ventilation setups. This compact device features a durable plastic housing, ball bearings for longevity, and supports a wide voltage range of 18V to 27V. With a maximum airflow of 24 cubic meters per hour at 13,000 RPM, it’s suitable for cooling, exhaust, and ventilation needs. Its electrical connections include a 310 mm wire lead, and it provides precise tachometer signals for speed monitoring. Certificated to meet safety standards, it offers durability with a lifespan of up to 57,500 hours. Purchase online for quick delivery and technical support, ensuring your systems operate smoothly with this high-quality axial fan.
Get EBMPAPST 414J2HH today—built for precision, high performance, and long-lasting durability in industrial ventilation systems.
Frequently Asked Questions
Where can I buy ebm-papst 414J2HH?
You can click on the BUY or RFQ button to purchase 414J2HH from an authorized ebm-papst distributor.
How do I troubleshoot issues or seek technical support for part 414J2HH?
You can download the 414J2HH datasheet or visit the ebm-papst website for support.
Who is the manufacturer of 414J2HH?
ebm-papst
