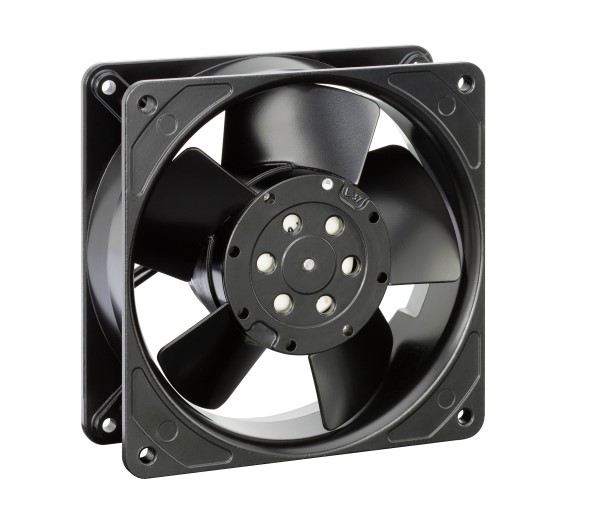

ebm-papst 4806Z AC Axial Compact Fan
The ebm-papst 4806Z is a compact AC axial fan engineered for demanding industrial applications. This fan provides a reliable solution for cooling and ventilation needs, operating on 115VAC at 60Hz. It boasts an airflow of 105 m3/h and a sound pressure level of 28 dB(A), ensuring efficient operation with minimal noise. Constructed with a sheet steel impeller, die-cast aluminum housing, and a ball bearing, the 4806Z offers durability and longevity. It includes overload protection via impedance protection and approvals such as VDE, CSA, UL, and CE. The fan's robust design and reliable performance make it suitable for a wide range of industrial cooling applications.
ebm-papst 4806Z AC Axial Compact Fan Specifications:
- Type: 4806 Z
- Phase: 1
- Nominal Voltage: 115 VAC
- Frequency: 60 Hz
- Speed (rpm): 1800
- Power Consumption: 12.0 W
- Min. Ambient Temperature: -40 °C
- Max. Ambient Temperature: 70 °C
- Air Flow: 105 m3/h
- Sound Power Level: 4.1 B
- Sound Pressure Level: 28 dB(A)
- Weight: 0.540 kg
- Dimensions: 119 x 119 x 38 mm
- Impeller Material: Sheet steel, painted black
- Housing Material: Die-cast aluminum
- Airflow Direction: Exhaust over struts
- Direction of Rotation: Clockwise, viewed toward rotor
- Bearing: Ball bearing
- Service Life L10 at 40 °C: 52500 h
- Service Life L10 at Maximum: 17500 h
- Cable: 2 flat plugs 2.8 x 0.5 mm. Housing with grounding lug for M4 x 8.
- Motor Protection: Protected from overload by impedance protection
- Approval: VDE, CSA, UL, CE
- Option: Electrical hookup to leads, 310 mm long, is available.
Buy the 4806Z ebm-papst AC Axial Compact Fan | myMectronic
Purchase the ebm-papst 4806Z AC axial fan securely online for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy ebm-papst 4806Z?
You can click on the BUY or RFQ button to purchase 4806Z from an authorized ebm-papst distributor.
How do I troubleshoot issues or seek technical support for part 4806Z?
You can download the 4806Z datasheet or visit the ebm-papst website for support.
Who is the manufacturer of 4806Z?
ebm-papst
