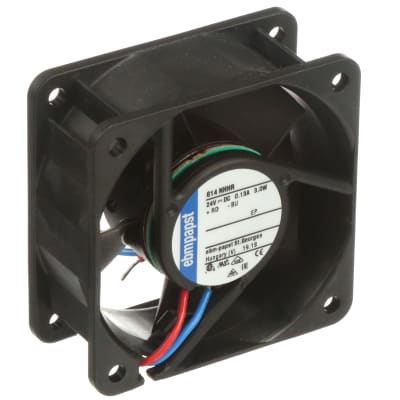

ebm-papst 614NHHR DC Axial Compact Fan
The EBM-PAPST 614NHHR is a compact and efficient DC axial fan engineered for reliable cooling in a wide range of industrial applications. Featuring a 24VDC operating voltage and a rotational speed of 6850 min-1, this fan delivers an airflow of 56 m3/h while maintaining a sound pressure level of 41 dB(A). Constructed with fiberglass-reinforced PA plastic for the impeller and fiberglass-reinforced PBTP plastic for the housing, the 614NHHR offers durability and resistance to environmental factors. It incorporates ball bearings for extended lifespan and includes electronic blocking and overload protection for enhanced safety and reliability. The fan is approved by VDE, CSA, UL, and CE, ensuring compliance with international standards. Its compact dimensions of 60 x 60 x 25 mm make it suitable for space-constrained environments.
ebm-papst 614NHHR DC Axial Compact Fan Specifications:
- Nominal Voltage: 24 VDC
- Nominal Voltage Range: 18 .. 26 VDC
- Speed: 6850 min-1
- Power Input: 2.9 W
- Min. Ambient Temperature: -20 °C
- Max. Ambient Temperature: 70 °C
- Air Flow: 56 m3/h
- Sound Power Level: 5.7 B
- Sound Pressure Level: 41 dB(A)
- Mass: 0.066 kg
- Dimensions: 60 x 60 x 25 mm
- Impeller Material: Fiberglass-reinforced PA plastic
- Housing Material: Fiberglass-reinforced PBTP plastic
- Air Flow Direction: Air exhaust over bars
- Direction of Rotation: Right, looking at rotor
- Bearing Type: Ball bearings
- Lifetime L10 at 40 °C: 60000 h
- Lifetime L10 at Maximum: 30000 h
- Connection Line: Single strands AWG 22, TR 64, bared and tin-plated.
- Motor Protection: Protected against reverse polarity and locking.
- Locked-Rotor Protection: With electronic blocking and overload protection
- Approval: VDE, CSA, UL, CE
Buy the 614NHHR EBM-PAPST DC Axial Compact Fan | myMectronic
Purchase the EBM-PAPST 614NHHR DC Axial Compact Fan securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy ebm-papst 614NHHR?
You can click on the BUY or RFQ button to purchase 614NHHR from an authorized ebm-papst distributor.
How do I troubleshoot issues or seek technical support for part 614NHHR?
You can download the 614NHHR datasheet or visit the ebm-papst website for support.
Who is the manufacturer of 614NHHR?
ebm-papst
