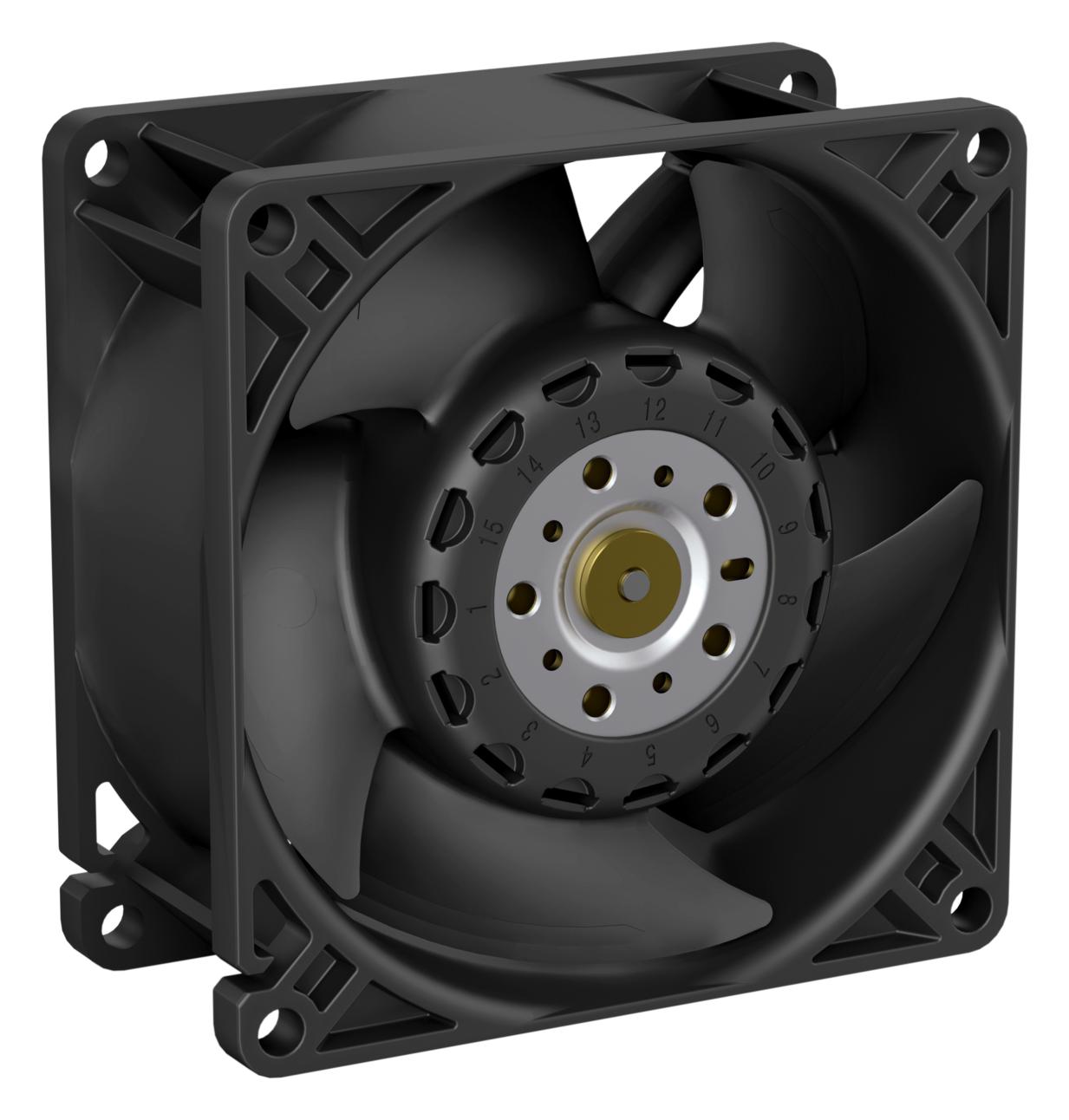

ebm-papst 8315100134 AxiForce Tubeaxial Fan
The EBM-PAPST AxiForce is a high-performance tubeaxial fan engineered to provide reliable cooling for industrial control cabinets and advanced technologies. Its innovative design incorporates a new aerodynamic housing and impeller, coupled with advanced motor technology, resulting in increased efficiency and reduced noise levels. Ideal for applications requiring consistent and effective temperature control, the AxiForce is indispensable in modern automation systems, 5G power modules, and other demanding environments. It offers variable installation flexibility, interactive integration into device logic, and is available with optional features like Go/NoGo alarms and temperature sensor control.
ebm-papst 8315100134 AxiForce Tubeaxial Fan Specifications:
- Performance: Increased by up to 18%
- Noise advantage: up to 6 dB (A) at size 80
- Air performance curve: Steep
- Technology: New aerodynamic design of housing and fan impeller, Latest powerful and efficient motor technology
- Material Housing: Plastic (PBT)
- Material Impeller: Plastic (PA)
- Air flow direction: Exhaust over struts
- Rotational direction: Counterclockwise, looking towards rotor
- Control inputs: PWM, analog voltage, temperature sensor
- Salt spray protection: Yes
- Degree of protection: up to IP68
- Nominal voltage: 175 VDC
- Voltage range: 8 … 16 VDC
- Sound pressure: 71 dB(A)
- Sound power level: 7,7 Watt
- Max. input current: 13.200 rpm
- Temperature range: -20…+75 °C
- Mass: 0,2 kg
Buy the 8315100134 EBM-PAPST AxiForce Tubeaxial Fan | myMectronic
Purchase the EBM-PAPST AxiForce fan securely and efficiently for your industrial cooling needs.
Buy Now
Frequently Asked Questions
Where can I buy ebm-papst 8315100134?
You can click on the BUY or RFQ button to purchase 8315100134 from an authorized ebm-papst distributor.
How do I troubleshoot issues or seek technical support for part 8315100134?
You can download the 8315100134 datasheet or visit the ebm-papst website for support.
Who is the manufacturer of 8315100134?
ebm-papst
