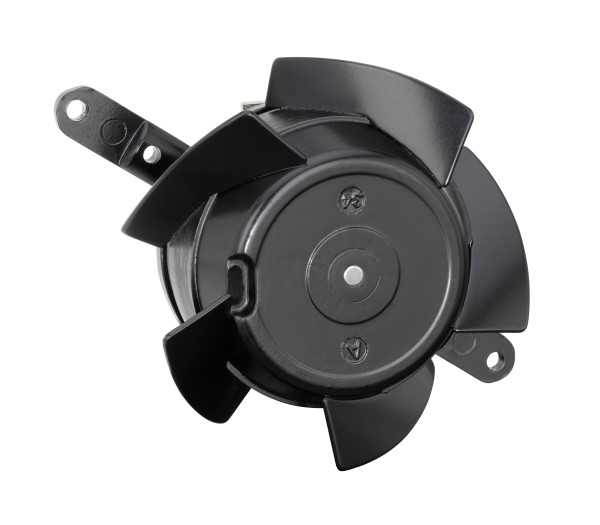

ebm-papst 8550TV AC Axial Compact Fan
The ebm-papst 8550TV is a robust AC axial compact fan engineered for demanding industrial environments. This fan boasts a 230V operating voltage, a rotational speed of 2650 RPM, and an airflow of 40 m3/h, making it suitable for cooling applications in electronics, machinery, and other equipment. Constructed with a die-cast aluminum impeller and a sintec sleeve bearing, the 8550TV ensures durability and long-term performance. It is protected from overload by impedance protection and approved by VDE, CSA, UL, and CE standards, guaranteeing safety and compliance. With a service life of up to 52500 hours at 40°C, this fan provides exceptional reliability and minimizes downtime.
ebm-papst 8550TV AC Axial Compact Fan Specifications:
- Type: 8550 TV
- Phase: 1
- Nominal Voltage: 230 VAC
- Frequency: 50 Hz
- Speed (rpm): 2650
- Power Consumption: 12.0 W
- Min Ambient Temperature: -10 °C
- Max Ambient Temperature: 70 °C
- Air Flow: 40 m3/h
- Sound Pressure Level: 27 dB(A)
- Weight: 0.370 kg
- Dimensions: Ø 76 x 37 mm
- Impeller Material: Die-cast aluminum
- Airflow Direction: Exhaust over mounting bracket
- Direction of Rotation: Clockwise, viewed toward rotor
- Storage: Sintec sleeve bearing
- Service Life L10 at 40 °C: 52500 h
- Service Life L10 at Maximum: 25000 h
- Cable: With 2 leads AWG 18, TR 64
- Motor Protection: Protected from overload by impedance protection
- Approval: VDE, CSA, UL, CE
Buy the 8550TV ebm-papst AC Axial Compact Fan | myMectronic
Purchase the ebm-papst 8550TV AC axial fan securely online and ensure your equipment stays cool and efficient.
Buy Now
Frequently Asked Questions
Where can I buy ebm-papst 8550TV?
You can click on the BUY or RFQ button to purchase 8550TV from an authorized ebm-papst distributor.
How do I troubleshoot issues or seek technical support for part 8550TV?
You can download the 8550TV datasheet or visit the ebm-papst website for support.
Who is the manufacturer of 8550TV?
ebm-papst
