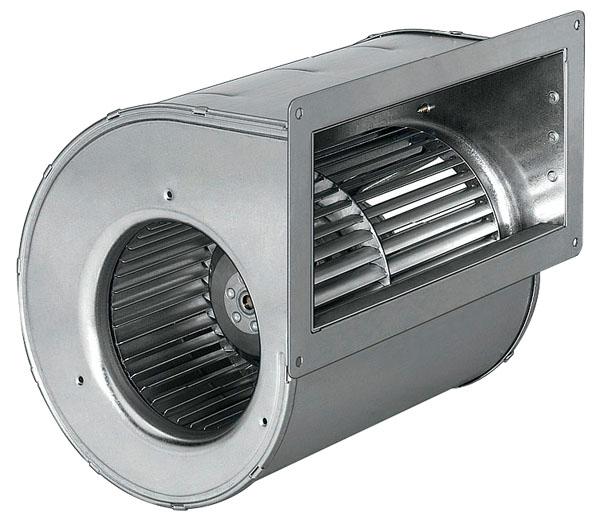

ebm-papst D2E133AM4701 Centrifugal AC Fan
The ebm-papst D2E133-AM47-01 is a robust AC centrifugal fan engineered for demanding industrial environments. Its forward curved impeller and dual inlet design ensure efficient air handling, making it suitable for ventilation, cooling, and exhaust applications. Constructed with sheet steel and featuring a ball bearing motor, this fan offers durability and long-lasting performance. The integrated thermal overload protector (TOP) provides added safety and reliability. It is commonly used in HVAC systems, industrial machinery, and process equipment where consistent airflow is critical.
ebm-papst D2E133AM4701 Centrifugal AC Fan Specifications:
- Type: AC centrifugal fan
- Motor: M2E068-DF
- Nominal Voltage: 230 V
- Frequency: 50/60 Hz
- Speed: 1500-2945 min-1
- Power Input: 190-200 W
- Current Draw: 0.84-0.92 A
- Motor Capacitor: 3 µF
- Capacitor Voltage: 450 VDB
- Min. Back Pressure: 0-100 Pa
- Max. Ambient Temperature: 25-35 °C
- Leakage Current: < 0.75 mA
- Size: 133 mm
- Operation Mode: S1
- Direction of Rotation: Clockwise
- Mounting Position: Any
- Humidity Class: F0
- Insulation Class: B
- Cable Exit: Axial
- Condensate Discharge Holes: None
- Bearing Motor: Ball bearing
- Mass: 3.48 kg
- Housing Material: Sheet steel, hot-galvanized
- Impeller Material: Sheet steel, hot-galvanized
- Motor Suspension: Motor mounted via brackets
- Motor Protection: Thermal overload protector (TOP)
- Product Conforming To: CE; EN 60335-1
- Surface of Rotor: Partially cast in aluminium
- Type of Protection: IP 44
- Max. Permissible Ambient Motor Temp. (Transp./Storage): +80 °C
- Min. Permissible Ambient Motor Temp. (Transp./Storage): -40 °C
- Approval: CCC
