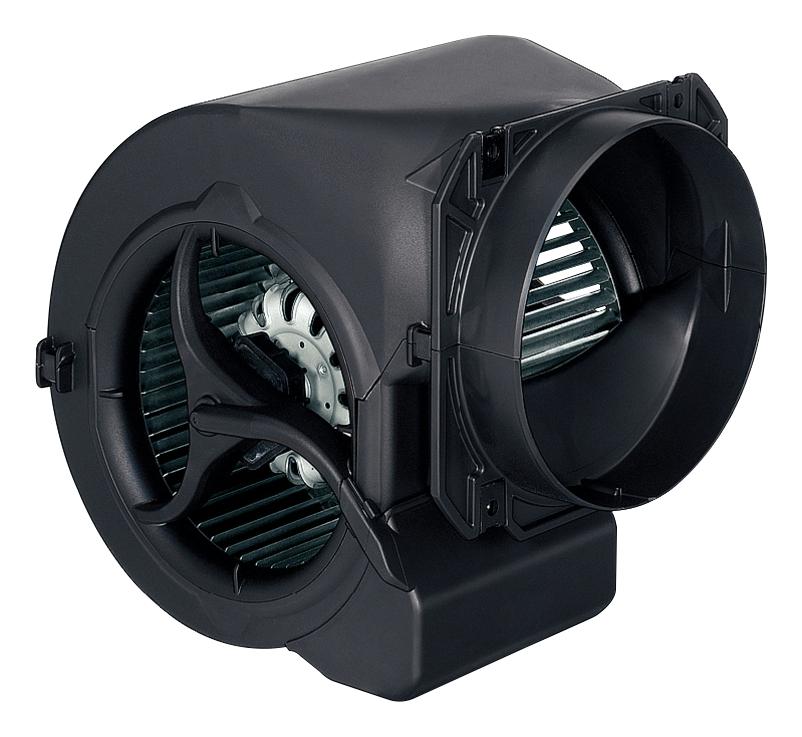

ebm-papst D2E146HT6701 Industrial Centrifugal Fan
The D2E146-HT67-01 is a 230VAC centrifugal fan designed for HVAC and industrial ventilation systems. Equipped with a calotte bearing and an aluminum surface rotor, it features a forward-curved, dual-inlet housing made of durable black polypropylene plastic with a flange. The fan includes a sheet steel, hot-galvanized housing, an IEC 60990 touch-safe electrical connection via terminal box, and anti-vibration motor mounting. It operates counter-clockwise (seen from rotor), with an IP20 rating, thermal overload protection, insulation class F, and is suitable for humidity classes up to F0. The fan runs continuously in S1 mode, delivering high efficiency and reliable performance in demanding environments.
ebm-papst D2E146HT6701 Industrial Centrifugal Fan Specifications:
- Power Supply: 230 VAC, 50/60 Hz
- Motor Type: S1, continuous operation
- Speed: 2435 min⁻¹ (at 50Hz), 2610 min⁻¹ (at 60Hz)
- Power Input: 0.26 kW (at 50Hz), 0.29 kW (at 60Hz)
- Current Draw: 1.55 A (50Hz), 1.75 A (60Hz)
- Airflow: 700 m³/h (at 50Hz), 760 m³/h (at 60Hz)
- Pressure Increase: 400 Pa (at 50Hz), 380 Pa (at 60Hz)
- Housing Material: Sheet steel, hot-galvanized
- Impeller Material: PP plastic, black
- Rotor Surface: Partially cast in aluminium
- Protection Class: IP20
- Insulation Class: F
- Humid Environment Suitability: F0 humidity class
- Operation Mode: Continuous (S1)
- Mounting Position: Shaft horizontal or rotor on bottom; rotor on top available upon request
- Operating Temperature: Max. +80°C, Min. -40°C
Buy the ebm-papst D2E146-HT67-01 – Reliable Centrifugal Fan for Industrial Applications
Order the ebm-papst D2E146-HT67-01 online today for reliable industrial ventilation. This high-efficiency centrifugal blower features a durable design with a calotte bearing, aluminum rotor, and IP20 protection. Its forward-curved, dual-inlet housing ensures optimal airflow and pressure increase while operating quietly and efficiently. Perfect for HVAC, manufacturing, and ventilation systems, it offers a long-lasting solution with easy electrical connections via terminal box, thermal overload protection, and suitability for humid environments. Buy now for fast delivery and proven performance.
Get ebm-papst D2E146-HT67-01 today—built for precision, durability, and efficient ventilation in demanding industrial and HVAC environments.
Frequently Asked Questions
Where can I buy ebm-papst D2E146HT6701?
You can click on the BUY or RFQ button to purchase D2E146HT6701 from an authorized ebm-papst distributor.
How do I troubleshoot issues or seek technical support for part D2E146HT6701?
You can download the D2E146HT6701 datasheet or visit the ebm-papst website for support.
Who is the manufacturer of D2E146HT6701?
ebm-papst
