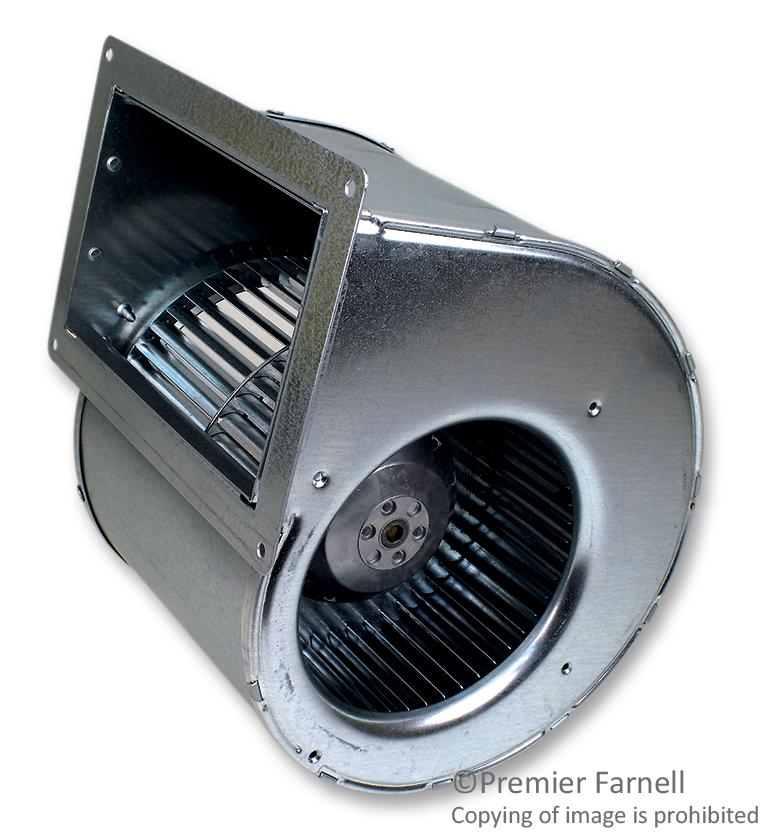

ebm-papst D4E160DA0122 Industrial Centrifugal Fan
The D4E160-DA01-22 is an AC centrifugal fan with forward-curved blades and dual inlet design, housed in a flange-mounted housing. It offers reliable operation with a compact 160 mm size, made from galvanized sheet steel. The fan features a ball bearing system, thermal overload protection, and an IP44 protection class, suitable for industrial and HVAC applications. With a maximum ambient temperature of +80°C and a minimum of -40°C, it delivers moderate airflow up to 1650 m³/h, operates at 1100 rpm, and consumes 145 W power, ensuring efficient airflow and static pressure performance in various environments.
ebm-papst D4E160DA0122 Industrial Centrifugal Fan Specifications:
- Size: 160 mm diameter
- Material of impeller: Galvanised sheet steel
- Housing material: Galvanised sheet steel
- Type of protection: IP 44
- Insulation class: B
- Operation mode: S1 continuous operation
- Max. ambient temperature: +80°C
- Min. ambient temperature: -40°C
- Mounting position: Any
- Dimensions: 160 mm diameter, compact design
- Power input: 145 W at 230 V, 50/60 Hz
- Speed: 1100 rpm
- Flow rate: Up to 1650 m³/h
- Pressure increase: Up to 300 Pa
- Motor protection: Thermal overload protector
- Bearing: Ball bearing
- Protection class: IP 44
- Compliance: EN 60335-1, CE
Buy the EBM-PAPST D4E160-DA01-22 – Reliable Industrial Centrifugal Fan for HVAC
Enhance your industrial ventilation with the EBMPAPST D4E160-DA01-22 centrifugal fan. Designed for reliability, it features forward-curved blades, galvanized steel housing, and IP44 protection. Operating at 1100 RPM, it delivers up to 1650 cubic meters per hour of airflow and static pressure up to 300 Pa. With thermal overload protection and compact size, it's perfect for HVAC, thermal management, and industrial applications. Easy to install in any position while ensuring efficient performance and durability for demanding environments.
Buy EBMPAPST D4E160-DA01-22 now and experience unmatched reliability and performance in industrial ventilation and thermal management.
Frequently Asked Questions
Where can I buy ebm-papst D4E160DA0122?
You can click on the BUY or RFQ button to purchase D4E160DA0122 from an authorized ebm-papst distributor.
How do I troubleshoot issues or seek technical support for part D4E160DA0122?
You can download the D4E160DA0122 datasheet or visit the ebm-papst website for support.
Who is the manufacturer of D4E160DA0122?
ebm-papst
