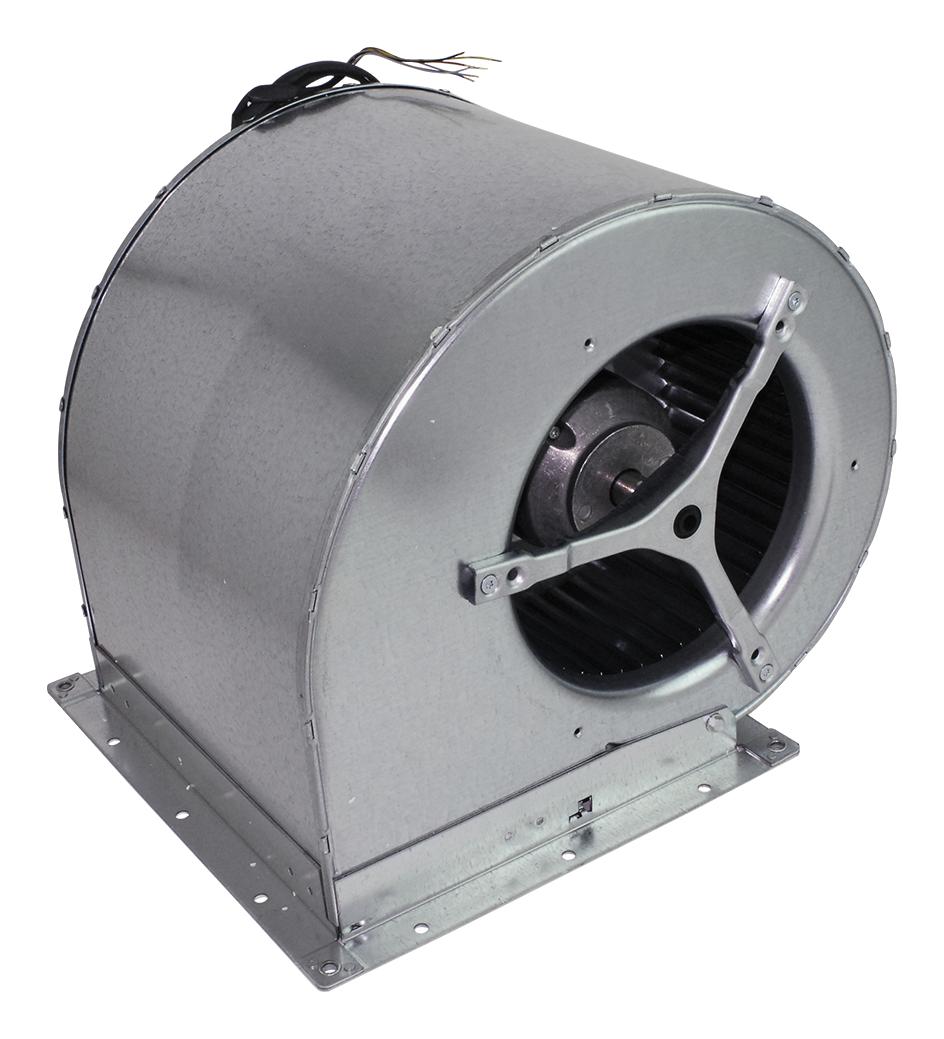

ebm-papst D4E225CC0130 Centrifugal Blower
The D4E225-CC01-30 is a 230VAC centrifugal blower featuring a ball bearing and a hot-galvanized steel impeller. This forward-curved, dual-inlet AC blower is housed in a hot-galvanized steel sheet enclosure and includes a thermal overload protector (TOP). It is mounted with anti-vibration hardware on both sides, operates in S1 continuous operation mode, and is suitable for environments with F2-1 humidity class. The rotor rotation is counter-clockwise when viewed from the front. The blower has an IP22 protection rating, complies with Class B installation category, and can operate within a temperature range of -40°C to 80°C. It is ideal for HVAC and industrial ventilation applications.
ebm-papst D4E225CC0130 Centrifugal Blower Specifications:
- Mass: 13kg
- Size: 225mm diameter
- Material of impeller: Sheet steel, hot-galvanised
- Housing material: Sheet steel, hot-galvanised
- Motor suspension: Motor anti-vibration mounted on both sides
- Direction of rotation: Counter-clockwise, seen on rotor
- Type of protection: IP 22
- Insulation class: F
- Humidity class: F2-1
- Max. permissible ambient motor temperature: +80°C
- Min. permissible ambient motor temperature: -40°C
- Mounting position: Any
- Motor bearing: Ball bearing
- Touch current according IEC 60990: <0.75mA
- Motor protection: Thermal overload protector
- Protection class: EN 60335-1; CE
- Voltage: 230V AC
- Frequency: 50Hz
- Max. speed: 1395 min-1
- Airflow: Up to 2975 m3/h
- Pressure increase: Up to 360 Pa
- Power input: 1.35 kW
- Current draw: 6.5 A
- Operation mode: S1 (continuous operation)
Buy the Buy ebm-papst AC centrifugal fan Part Number D4E225CC0130 Online
Purchase the ebm-papst D4E225-CC01-30 centrifugal blower online now to benefit from high reliability and efficient airflow for HVAC, industrial, and ventilation projects. Featuring a robust steel housing, ball bearing support, thermal overload protection, and IP22 rating, this forward-curved, dual-inlet fan ensures optimal performance under challenging conditions. With a versatile operating temperature range of -40°C to 80°C and mounting flexibility, it is the perfect choice for demanding environments requiring consistent and efficient air circulation. Buy online today for quick delivery and dependable operation.
Order your ebm-papst Series D4E225-CC01-30 centrifugal blower today and ensure reliable airflow for your HVAC or industrial ventilation needs.
Frequently Asked Questions
Where can I buy ebm-papst D4E225CC0130?
You can click on the BUY or RFQ button to purchase D4E225CC0130 from an authorized ebm-papst distributor.
How do I troubleshoot issues or seek technical support for part D4E225CC0130?
You can download the D4E225CC0130 datasheet or visit the ebm-papst website for support.
Who is the manufacturer of D4E225CC0130?
ebm-papst
