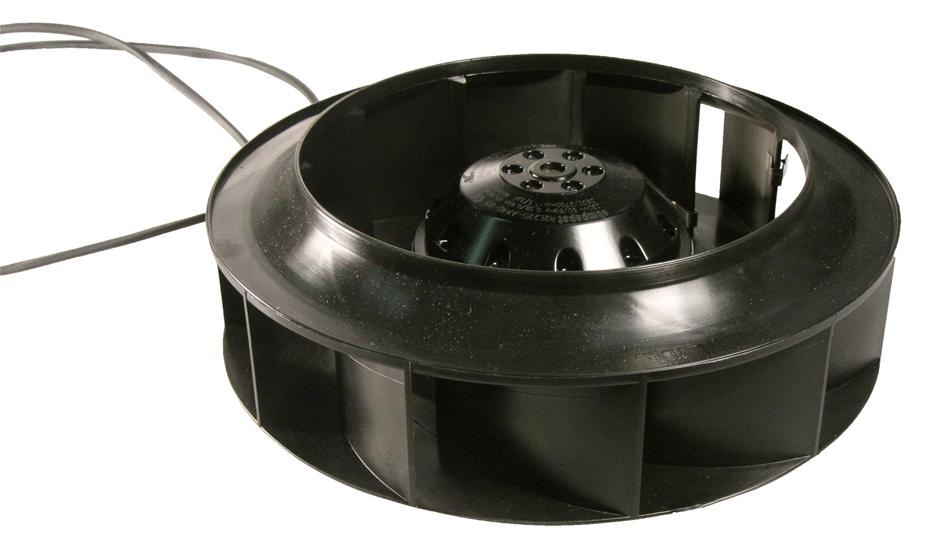

ebm-papst R2E220AA40B8 Centrifugal Fan
The R2E220-AA40-B8 is an AC centrifugal fan designed with backward curved, single inlet blades for efficient airflow. It features a compact size of 220mm, lightweight construction of 1.5 kg, and a robust plastic impeller reinforced with fibreglass. This model supports multiple operation modes with a maximum ambient temperature of 55°C and is suitable for various installation positions. It conforms to international standards including EN 60335-1, UL 2111, and CSA, ensuring safety and reliability in diverse applications. Ideal for ventilation, air circulation, and cooling solutions in industrial and commercial settings.
ebm-papst R2E220AA40B8 Centrifugal Fan Specifications:
- Size: 220mm diameter
- Weight: 1.5 kg
- Material of impeller: Plastic PAG, fibreglass-reinforced
- Number of blades: 11
- Direction of rotation: Clockwise
- Protection class: IP 44; Depending on installation and position
- Insulation class: FA-2
- Max. permissible ambient temperature: 55°C
- Min. permissible ambient temperature: -40°C
- Operation mode: S1 (Continuous operation)
- Motor bearing: Ball bearing
- Leakage current: <0.75 mA
- Motor protection: Thermal overload protector wired internally
- Cable exit: Connection line PFA AWG20, 4 x brass lead tips crimped
- Certifications: EN 60335-1, CE, UL 2111, CSA C22.2 Nr.77, CCC
Buy the ebmpapst Series AC centrifugal fan: R2E220-AA40-B8
Purchase the high-quality ebmpapst R2E220-AA40-B8 centrifugal fan online today and ensure efficient airflow and reliable operation for your ventilation needs. This robust fan features a compact 220mm size, lightweight design, and conforms to international safety standards. Ideal for industrial and commercial environments, it offers easy installation, durable materials, and exceptional performance in various applications. Don't miss the opportunity to upgrade your ventilation system—buy now to benefit from fast delivery and technical support.
Buy ebmpapst R2E220-AA40-B8 now and experience unmatched reliability and high-performance airflow with backward curved blades for efficient ventilation.
Frequently Asked Questions
Where can I buy ebm-papst R2E220AA40B8?
You can click on the BUY or RFQ button to purchase R2E220AA40B8 from an authorized ebm-papst distributor.
How do I troubleshoot issues or seek technical support for part R2E220AA40B8?
You can download the R2E220AA40B8 datasheet or visit the ebm-papst website for support.
Who is the manufacturer of R2E220AA40B8?
ebm-papst
