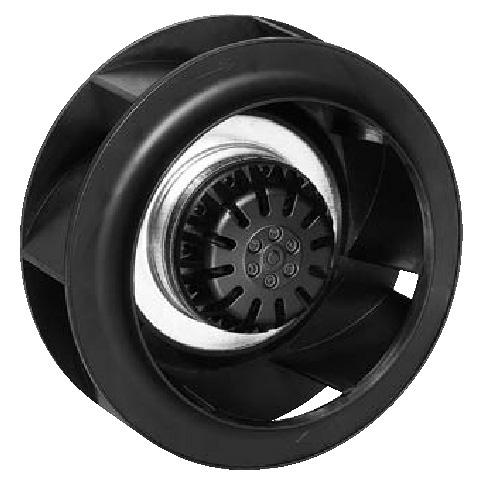

ebm-papst R2E220AB0605 Industrial Centrifugal Fan
The R2E220-AB06-05 is a 230VAC single-inlet centrifugal fan featuring a ball bearing, wire-leaded power connection, and a single-phase two-pole motor with an operating capacitor. Made entirely of black-coated PA6.6 plastic, the impeller is backward curved with long blades, providing high resistance to dirt and dust while maintaining excellent hydraulic efficiency. The fan rotates clockwise when viewed from the rotor and operates in S1 continuous mode. It has a speed rating of 3050 RPM, rated power of 120W, a maximum ambient temperature of 45°C, and includes a thermal overload protector. The product conforms to Protection Class I with an IP44 protection rating and is suitable for HVAC applications.
ebm-papst R2E220AB0605 Industrial Centrifugal Fan Specifications:
- Size: 220mm
- Operation mode: Continuous (S1)
- Direction of rotation: Clockwise, seen on rotor
- Insulation class: Variable
- Cable exit: Wired internally
- Bearing-motor: Ball bearing
- Mass: 1.5 kg
- Material of electronics housing: Black-coated PA6.6 plastic
- Material of impeller: Coated in black
- Motor protection: Thermal overload protector
- Protection class: IP44
- Standard conformity: CE, CCC, GOST
- Number of blades: 11
- Type of protection: IP44
- Approval: CE
- Rated voltage: 230V
- Rated current: 0.51A
- Power input: 120W
- Speed: 3050 RPM
- Max. ambient temperature: 45°C
Buy the Buy ebmpapst R2E220-AB06-05 Part Number R2E220AB0605 Online
Purchase the ebmpapst R2E220-AB06-05 online for reliable, high-performance airflow in HVAC and industrial ventilation applications. Crafted from durable materials, this backward curved centrifugal fan features a 230V motor, IP44 protection, and a robust design suitable for continuous operation. Its efficient impeller and thermal overload protection ensure long-term, maintenance-free operation. Ideal for ducting and ventilation systems, it combines excellent hydraulic efficiency with ease of installation. Order now to enhance your ventilation solutions with a proven, high-quality fan, available for swift online delivery and excellent support.
Get ebmpapst R2E220-AB06-05 today—built for high-efficiency airflow and long-lasting durability in HVAC systems.
Frequently Asked Questions
Where can I buy ebm-papst R2E220AB0605?
You can click on the BUY or RFQ button to purchase R2E220AB0605 from an authorized ebm-papst distributor.
How do I troubleshoot issues or seek technical support for part R2E220AB0605?
You can download the R2E220AB0605 datasheet or visit the ebm-papst website for support.
Who is the manufacturer of R2E220AB0605?
ebm-papst
