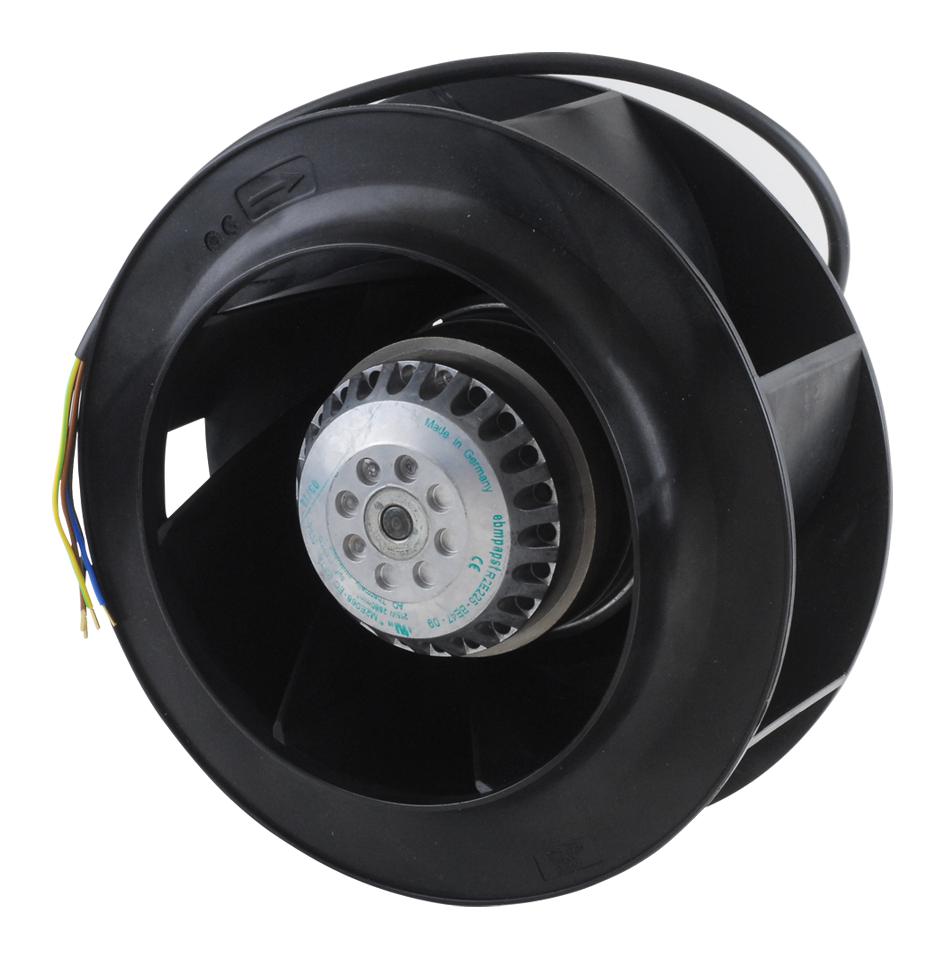

ebm-papst R2E225BE4709 Backward Curved Centrifugal Fan
The R2E225-BE47-09 is a 230VAC motorized impeller featuring a ball bearing and backward curved centrifugal fan with long blades. Made entirely of PA66 plastic, it offers high hydraulic efficiency and resistance to dirt and dust. The impeller is maintenance-free with a wire leaded power connection. It has Class B insulation, rotates clockwise when viewed on the rotor, and is rated for 185W power with a maximum ambient temperature of 45°C. Equipped with a 5μF capacitor, this impeller is suitable for HVAC applications.
ebm-papst R2E225BE4709 Backward Curved Centrifugal Fan Specifications:
- Voltage Rating: 230 VAC
- Material: PA66 plastic
- Blade Type: Long blades, backward curved
- Rotation Direction: CW as seen from intake side
- Power Rating: 185 W
- Insulation Class: B
- Capacitor: 5μF
- Operating Temperature: Up to 45°C
- Bearings: Maintenance-free ball bearings
- Cable Exit: Variable
- Impeller Diameter: 225 mm
- Mounting Hole Pattern: 4x 90YM4 Holes + Bolt Circle y> 200 400600800 1000 1200
Buy the Buy ebm-papst R2E225-BE47-09 Part Number R2E225BE4709 Online
Purchase the ebm-papst R2E225-BE47-09 now and enjoy the benefits of a high-efficiency, maintenance-free backward curved centrifugal fan. Made of durable PA66 plastic with long blades, it ensures reliable operation in HVAC systems. Designed for easy installation with variable cable exit options, it features Class B insulation and a power rating of 185W. Suitable for demanding environments, this impeller offers long-lasting performance, resistance to dirt and dust, and optimal airflow, making it an ideal choice for efficient ventilation solutions.
Buy ebm-papst R2E225-BE47-09 now and experience unmatched reliability and performance in backward curved centrifugal fans with high efficiency and low maintenance.
