ebm-papst S4D450AP0310 Industrial Axial Fan

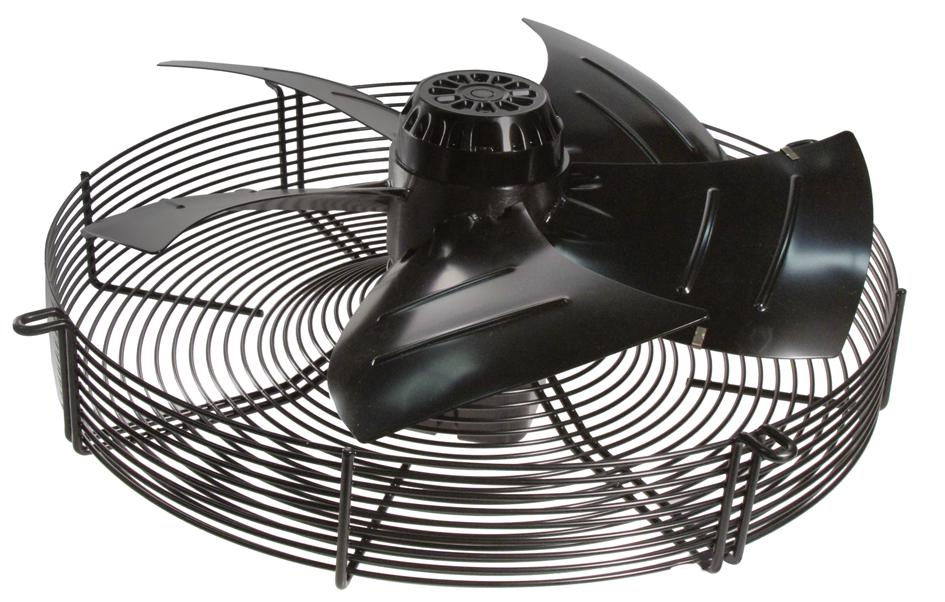

The S4D450-AP03-10 is an AC axial fan designed for reliable industrial airflow applications. It features a 450 mm size, five blades of black-coated steel, and a robust ABS plastic terminal box. Equipped with a ball bearing system for durability, it operates continuously in an S1 mode, with a counter-clockwise airflow direction. The fan is protected by a black steel guard grille, supports operation at 50/60 Hz, and can handle ambient temperatures from -40°C to +80°C. Compliant with safety standards, it ensures dependable performance in demanding environments.
ebm-papst S4D450AP0310 Industrial Axial Fan Specifications:
- Size: 450 mm
- Mass: 7.2 kg
- Material of blades: Steel, coated in black
- Material of terminal box: ABS plastic
- Material of guard grille: Steel, coated in black plastic (RAL9005)
- Number of blades: 5
- Direction of air flow: Counter-clockwise (seen on rotor)
- Type of protection: IP 44 (depending on installation and position)
- Insulation class: FA-2
- Max. ambient temperature: 80°C
- Min. ambient temperature: -40°C
- Mounting position: Shaft horizontal or rotor on bottom; rotor on top on request
- Rotor-side bearing: Ball bearing
- Touch current: Less than 0.75 mA
- Electrical leads: Via terminal box
- Protection class: IP 44
- Operation mode: Continuous S1
- Temperature ratings: Max. 80°C operating, -40°C storage
- Connection type: Y Star connection
- Rated voltage: 460 VAC
- Frequency: 50/60 Hz
- Speed: 1460 RPM at 60 Hz, 1330 RPM at 50 Hz
- Power input: 380 W at 60 Hz, 285 W at 50 Hz
- Max. back pressure: 75-80 Pa
- Max. permissible ambient motor temp: 80°C
- Standard compliance: EN 60335-1
Buy the ebm-papst S4D450-AP03-10 – Reliable Axial Fan for Industrial Applications
Purchase the ebm-papst S4D450-AP03-10 axial fan online today and ensure your cooling or ventilation needs are met with a durable, high-performance unit. With its robust steel blades coated in black, it offers reliable continuous operation in industrial settings. The fan features a black-coated steel guard grille for added safety, an ABS plastic terminal box for easy wiring, and a ball bearing system designed for longevity. Perfect for environments requiring efficient airflow, this fan operates effectively at 50/60 Hz, handling ambient temperatures from -40°C to +80°C. Secure your supply chain today for optimal cooling solutions.
Order your ebm-papst series S4D450-AP03-10 axial fan today and experience consistent airflow performance for demanding industrial environments.
