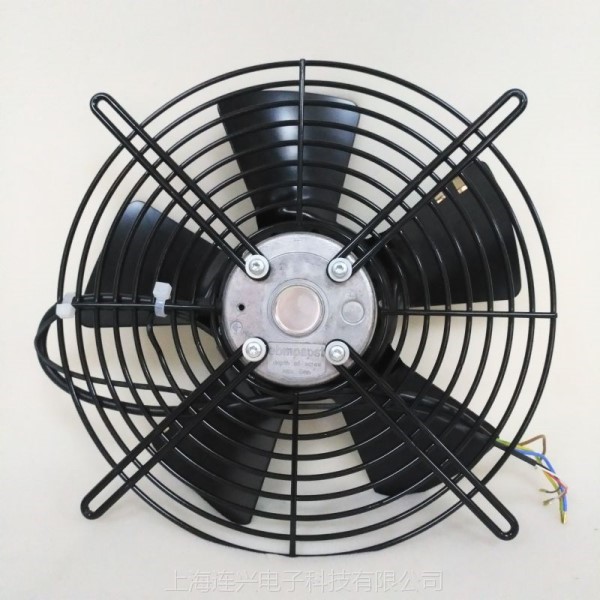

ebm-papst S4S250BA2056 Axial Fan with Grille
The ebm-papst S4S250-BA20-56 axial fan is a high-performance solution for industrial ventilation and cooling needs. Designed with straight blades and a guard grille, this fan provides efficient airflow and protection in demanding environments. It operates on 115VAC at 60Hz, offering a speed of 1550 RPM and a power input ranging from 75 to 80W. The fan's robust construction, including a black coated rotor and impeller, ensures durability and longevity. It is suitable for a wide range of applications, including HVAC systems, industrial equipment cooling, and process ventilation, where reliable and efficient airflow is critical. The fan is also equipped with a thermal overload protector for added safety and operational stability.
ebm-papst S4S250BA2056 Axial Fan with Grille Specifications:
- Motor: M4S068-CF
- Phase: 1
- Nominal Voltage: 115 VAC
- Frequency: 60 Hz
- Speed: 1550 min-1
- Power Input: 75-80 W
- Current Draw: 1.1-1.12 A
- Min. Ambient Temperature: -25 °C
- Max. Ambient Temperature: 40 °C
- Mass: 2 kg
- Size: 250 mm
- Rotor Surface: Coated in black
- Impeller Material: Sheet steel, coated in black
- Guard Grille Material: Steel, coated in black plastic (RAL9005)
- Number of Blades: 5
- Air Flow Direction: V
- Direction of Rotation: Counter-clockwise
- Type of Protection: IP 44
- Insulation Class: B
- Humidity Class: F5
- Max. Permissible Ambient Motor Temp: + 80 °C
- Min. Permissible Ambient Motor Temp: -40 °C
- Mounting Position: Any
- Condensate Discharge Holes: None
- Operation Mode: S1
- Motor Bearing: Ball bearing
- Touch Current: < 0.75 mA
- Motor Protection: Thermal overload protector (TOP) wired internally
- Cable Exit: Lateral
- Protection Class: I
- Product Conforming to Standard: EN 60335-1; CE
- Approval: CSA; UL
