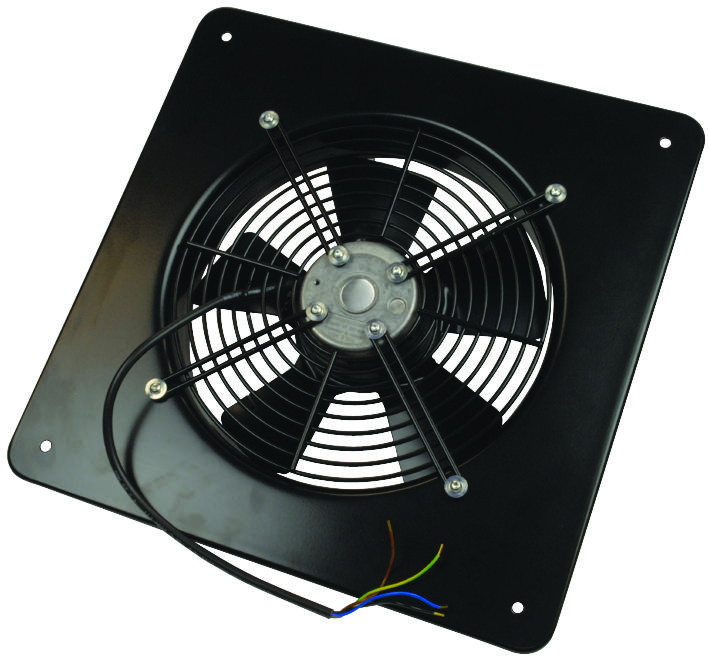

ebm-papst W2E250DB1351 Axial Fan
The W2E250-DB13-51 is a 115VAC axial fan featuring a maintenance-free ball bearing and a sheet steel impeller. This series includes a 7-blade AC axial fan with a die-cast aluminum housing. The fan rotates counter-clockwise when viewed from the rotor side, with airflow exhausted over the supporting struts. It connects via terminal strips and has an operating capacitor. Designed for continuous operation (S1 mode), the fan features insulation class F and an IP44 protection rating.
ebm-papst W2E250DB1351 Axial Fan Specifications:
- Material: Housing: Die-cast aluminium
- Impeller: Sheet steel
- Direction of air flow: Exhaust over struts
- Direction of rotation: Counter-clockwise, seen on rotor
- Connection: Via terminal strip
- Mass: 620g
- Insulation Class: F
- Protection: IP44
- Operation mode: Continuous operation (S1)
- Fan type: Axial
- Number of blades: 7
- Voltage: 115VAC
- Frequency: 50/60Hz
- Speed: Approx. 2850 rpm
- Input power: 9.0 W
- Temperature range: -20°C to +70°C
- Protection against moisture and salt fog
- Special versions available: Speed signal, Go/No-go alarm, External and internal temperature sensors, PWM and analog control inputs
- Mounted using single wires AWG 22, TR 64
Buy the ebm-papst 1224DB1351 – Reliable Axial Fan for Industrial Applications
Order the ebm-papst 1224DB1351 axial fan online today—engineered for optimal performance, durability, and energy efficiency. Equipped with maintenance-free ball bearings, IP44 protection, and a robust die-cast aluminium housing, this fan ensures reliable operation in continuous industrial cooling tasks. Its versatile features include multiple control options, temperature sensors, and corrosion resistance, making it suitable for diverse environments. Enhance your system's cooling efficiency with this high-quality, easy-to-install axial fan suitable for demanding applications.
Get ebm-papst 1224DB1351 today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy ebm-papst W2E250DB1351?
You can click on the BUY or RFQ button to purchase W2E250DB1351 from an authorized ebm-papst distributor.
How do I troubleshoot issues or seek technical support for part W2E250DB1351?
You can download the W2E250DB1351 datasheet or visit the ebm-papst website for support.
Who is the manufacturer of W2E250DB1351?
ebm-papst
