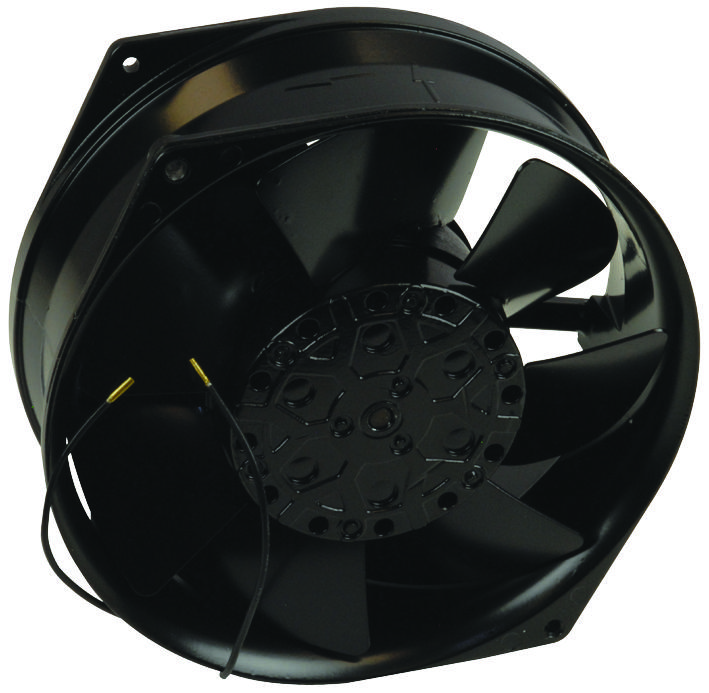

ebm-papst W2S130AB0321 Axial fan
The W2S130-AB03-21 is a compact, high-performance axial fan designed for industrial cooling and ventilation applications. Operating on 230VAC, it features a robust black-coated sheet steel housing, a black-coated die-cast aluminum wall ring, and seven curved blades for efficient airflow. The fan rotates counter-clockwise viewed from the rotor, equipped with ball bearings for durability, and protected by IP20 standards. Suitable for ambient temperatures from -40°C to 85°C, it includes a thermal overload protector, and is ideal for continuous S1 operation, ensuring reliable and safe performance in demanding environments.
ebm-papst W2S130AB0321 Axial fan Specifications:
- Size: 130 mm diameter
- Weight: 1.08 kg
- Material of blades: Sheet steel, coated in black
- Material of wall ring: Die-cast aluminium, coated in black
- Number of blades: 7
- Direction of air flow: Counter-clockwise
- Protection class: IP20
- Insulation class: F
- Max. ambient temperature: 80°C
- Min. ambient temperature: -40°C
- Operation mode: S1 continuous
- Motor bearings: Ball bearing
- Thermal overload protector: Wired internally
- Cable exit: Connection line AWG20, 2x brass lead tips crimped
- Max. back pressure: 120 Pa
- Max. power input: 45 W
- Nominal Voltage: 230 VAC
- Frequency: 50/60 Hz
- Speed: 2800-3250 RPM
- Current draw: 0.25-0.31 A
Buy the Buy ebm-papst Axial Fan Part Number W2S130AB0321 Online
Purchase the ebm-papst axial fan online to ensure reliable airflow and cooling performance in demanding environments. This compact fan features a black-coated steel housing and die-cast aluminum ring, with seven blades for optimal airflow. Designed for continuous operation (S1), it is protected to IP20 standards and includes thermal overload protection for safety. Operating on 230VAC at 50/60 Hz, it has a maximum speed of 3250 RPM and a power input of 45W, suitable for ambient temperatures from -40°C to 80°C. Buy now for efficient cooling solutions.
Buy ebm-papst W2S130AB0321 now and experience unmatched reliability and performance with this durable, high-efficiency axial fan for industrial ventilation.
Frequently Asked Questions
Where can I buy ebm-papst W2S130AB0321?
You can click on the BUY or RFQ button to purchase W2S130AB0321 from an authorized ebm-papst distributor.
How do I troubleshoot issues or seek technical support for part W2S130AB0321?
You can download the W2S130AB0321 datasheet or visit the ebm-papst website for support.
Who is the manufacturer of W2S130AB0321?
ebm-papst
