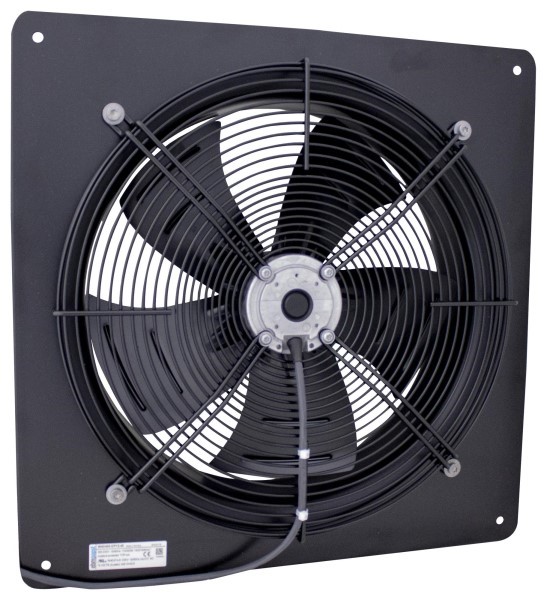

ebm-papst W4D400DP1240 Axial Fan
The ebm-papst W4D400-DP12-40 is a high-performance AC axial fan engineered for demanding industrial environments. Its sickle-shaped blades and durable construction ensure efficient cooling and long-lasting reliability. Suitable for applications requiring robust airflow, this fan is a dependable solution for various industrial processes and equipment cooling needs. It operates on 230V and delivers a substantial airflow rate while maintaining a reasonable power consumption, making it an energy-efficient choice.
ebm-papst W4D400DP1240 Axial Fan Specifications:
- Motor: M4D074-EI
- Nominal Voltage: 200-230 VAC
- Wiring: Δ
- Frequency: 50-60 Hz
- Speed (rpm): 1400-1640
- Power Consumption: 150-225 W
- Current Draw: 0.72-0.92 A
- Max. Back Pressure: 100-125 Pa
- Min. Ambient Temperature: -40 °C
- Max. Ambient Temperature: 65 °C
- Starting Current: 2.8-3.0 A
- Overall Efficiency ηes: 32.7%
- Air Flow qv: 2595 m³/h
- Pressure Increase pfs: 91 Pa
- Speed n: 1415 rpm
- Specific Ratio: 1.00
- Weight: 9 kg
- Fan Size: 400 mm
- Blade Material: Sheet steel, painted black
- Fan Housing Material: Sheet steel, pre-galvanized and coated with black plastic
- Guard Grille Material: Steel, phosphated and coated with black plastic
- Number of Blades: 5
- Airflow Direction: V
- Direction of Rotation: Counterclockwise
- Degree of Protection: IP44
- Insulation Class: F
- Moisture/Environmental Protection: H0+
- Max. Permitted Ambient Temp.: +80 °C
- Min. Permitted Ambient Temp.: -40 °C
- Installation Position: Shaft horizontal or rotor on bottom
- Condensation Drainage Holes: On rotor side
- Mode: S1
- Motor Bearing: Ball bearing
- Touch Current: < 0.75 mA
- Motor Protection: Thermal overload protector (TOP)
