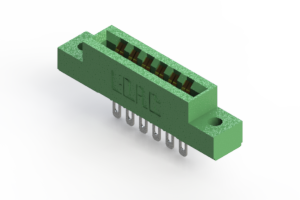

EDAC 306006500102 Card Edge Connector
This card edge connector with a 0.156-inch (3.96 mm) pitch offers a robust design suitable for various electronic applications. It features a single row of six contacts, with contact tails measuring 0.087 x 0.015 inches (2.21 x 0.38 mm) and a tail length of 0.282 inches (7.16 mm). The insulator material is UL 94V-0 thermoplastic polyester, providing flame resistance and durability. Mounting options include mounting holes with a diameter of 0.128 inches (3.25 mm), making it adaptable for different device configurations. The connector is RoHS compliant and UL certified, ensuring environmental safety and product reliability.
EDAC 306006500102 Card Edge Connector Specifications:
- Contact spacing: 0.156 inches (3.96 mm)
- Number of contacts: 6
- Contact tails: 0.087 x 0.015 inches (2.21 x 0.38 mm)
- Tail length: 0.282 inches (7.16 mm)
- Insulator material: UL 94V-0 thermoplastic polyester
- Mounting holes: 0.128 inches (3.25 mm) diameter
- Contact material: Copper alloy
- Plating: Gold on mating area, Tin on tails with Nickel underplating
- Current rating: Not specified
- Contact resistance: 10 milliohms maximum
- Dielectric withstand voltage: 1800 V AC rms at sea level
- Insulation resistance: 5000 megaohms minimum
- Operating temperature: -40°C to +105°C
- Insertion force: 16 oz (4.45 N) maximum per contact
- Withdrawal force: 1 oz (0.28 N) minimum per contact
- RoHS compliant and UL certified
Buy the Buy Universal Card Edge Connector Part Number 306006500102 Online
Purchase the reliable card edge connector online today and enjoy the convenience of fast shipping and competitive prices. This connector features a 0.156-inch pitch, six high-quality contacts, and mounting options for versatile installation. Its UL certification and RoHS compliance ensure safety and environmental standards are met, making it an excellent choice for electronic equipment. Whether for consumer electronics or industrial applications, this connector provides a secure and durable connection with easy assembly and reliable electrical performance. Order now to enhance your project’s connectivity and dependability.
Buy Universal Card Edge Connector 306006500102 now and experience unmatched reliability and performance. Ideal for electronic device connections with secure mounting options.
Frequently Asked Questions
Where can I buy EDAC 306006500102?
You can click on the BUY or RFQ button to purchase 306006500102 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 306006500102?
You can download the 306006500102 datasheet or visit the EDAC website for support.
Who is the manufacturer of 306006500102?
EDAC
