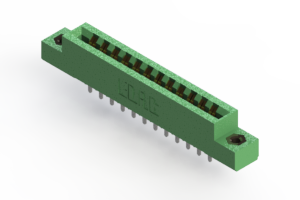

EDAC 306012520108 Card Edge Connector
The EDAC 306 series card edge connector is designed for reliable board-to-board connections. With a 0.156" (3.96mm) contact spacing and the ability to accept 0.062" (1.57mm) thick P.C. boards, this connector provides a secure and stable interface. It features a low-profile insulator body and a variety of mounting options, including threaded inserts and card guides, making it suitable for diverse industrial applications. The connector is RoHS compliant and UL certified, ensuring adherence to industry standards. Contact termination options include P.C. tail and wire hole configurations.
EDAC 306012520108 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair when tested with .070” (1.78mm) thick gauge
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair when tested with .054” (1.37mm) thick gauge
- Contact Spacing: 0.156” (3.96mm)
- Accepts Board Thickness: 0.062” (1.57mm)
