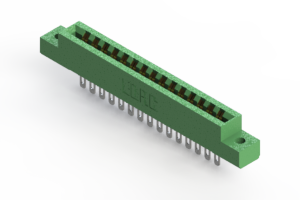

EDAC 306015500102 Card Edge Connector
This card edge connector features a contact spacing of 0.156 inches (3.96 mm) and accommodates 15 contacts. It includes a wire hole tail size of 0.087 x 0.015 inches (2.21 x 0.38 mm) and a tail length of 0.282 inches (7.16 mm). The connector is made from UL 94V-0 thermoplastic polyester with gold and tin-plated copper alloy contacts ensuring high reliability. It supports a dielectric withstand voltage of 1800 V AC rms, operates from -40°C to +105°C, and offers robust mounting options with two 0.128-inch (3.25 mm) diameter mounting holes, making it ideal for secure and durable connections in electronic applications.
EDAC 306015500102 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Wire Hole Tail Size: 0.087 x 0.015 inches (2.21 x 0.38 mm)
- Tail Length: 0.282 inches (7.16 mm)
- Mounting Holes Diameter: 0.128 inches (3.25 mm)
Buy the Custom Series Card Edge Connector: 306015500102
Order the Edac Series 306015500102 card edge connector online today and enhance your electronic assembly with a high-quality, reliable connector featuring 15 contacts, gold and tin-plated copper alloy contacts, and multiple mounting options. Designed for durability and ease of installation, this connector ensures secure connections in various electronic devices. Its UL certification guarantees safety and compliance, making it ideal for professional and DIY applications. Purchase now for fast delivery and superior performance in your projects.
Buy Edac Series 306015500102 card edge connector now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy EDAC 306015500102?
You can click on the BUY or RFQ button to purchase 306015500102 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 306015500102?
You can download the 306015500102 datasheet or visit the EDAC website for support.
Who is the manufacturer of 306015500102?
EDAC
