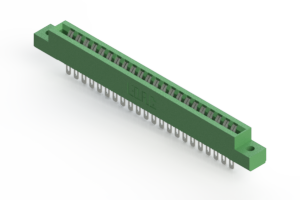

EDAC 306022400102 Card Edge Connector
The EDAC 306-022-400-102 card edge connector is designed for applications requiring a 0.156" (3.96mm) contact spacing. It accepts 0.062" (1.57mm) nominal thickness P.C. board and features a low-profile insulator body. Termination options include P.C. tail and wire hole, and a variety of mounting options are available to suit diverse application needs. This connector is RoHS compliant and suitable for industrial and commercial electronics applications.
Authorized Distributors
Source:Mouser Electronics
Part No:306-022-400-102
Stock:0
Inv Date:05-29-2026
Price: Unit price: $17.47
Buy/RFQ:
Source:Master Electronics
Part No:306-022-400-102
Stock:13
Inv Date:05-28-2026
Price: Unit price: $10.63
Buy/RFQ:
Source:Onlinecomponents.com
Part No:306-022-400-102
Stock:13
Inv Date:05-28-2026
Price: Unit price: $10.63
Buy/RFQ:
EDAC 306022400102 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair when tested with .070” (1.78mm) thick gauge
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair when tested with .054” (1.37mm) thick gauge
- Contact Spacing: 0.156” (3.96mm)
- Accepts Board Thickness: 0.062” (1.57mm)
Buy the 306-022-400-102 EDAC Card Edge Connector | myMectronic
Purchase the EDAC 306-022-400-102 Card Edge Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 306022400102?
You can click on the BUY or RFQ button to purchase 306022400102 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 306022400102?
You can visit the EDAC website for support.
Who is the manufacturer of 306022400102?
EDAC
