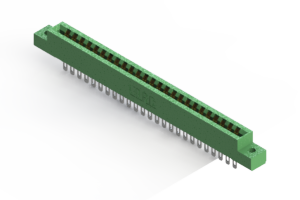

EDAC 306025500102 Card Edge Connector
This card edge connector with a 0.156-inch (3.96 mm) contact spacing supports 25 contacts and includes wire hole tails measuring 0.087 inches by 0.015 inches (2.21 mm by 0.38 mm). It features mounting holes with a diameter of 0.128 inches (3.25 mm) for versatile installation options. Constructed with UL 94V-0 thermoplastic polyester and copper alloy contacts, it offers gold plating on contact areas, tin plating on tails, and nickel underplating. Suitable for multiple mounting configurations and RoHS compliant, it withstands temperatures from -40°C to +105°C. It is ideal for electronic and PCB applications requiring reliable edge connections.
EDAC 306025500102 Card Edge Connector Specifications:
- Contact spacing: 0.156 inches (3.96 mm)
- Number of contacts: 25
- Wire hole tail size: 0.087 inches x 0.015 inches (2.21 mm x 0.38 mm)
- Tail length: 0.282 inches (7.16 mm)
- Mounting holes diameter: 0.128 inches (3.25 mm)
- Insulator Material: UL 94V-0 thermoplastic polyester
- Contact Material: Copper alloy
- Contact Plating: Gold on mating area, Tin on tails, Nickel underplating
- Current Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) max
- Withdrawal Force: 1 oz (0.28 N) min
- RoHS compliant and UL Certified
Buy the Buy Edac Card Edge Connector Part Number 306025500102 Online
Secure your electronic projects with the Edac series card edge connector. Featuring a 0.156-inch pitch, 25 contacts, and versatile mounting options, this reliable connector is UL certified and RoHS compliant. It withstands high voltages and temperatures from -40°C to +105°C, making it ideal for PCB connections in various electronics and industrial applications. Easy to install with multiple mounting configurations, it ensures durable connections for your sensitive electronic components. Purchase online today to benefit from quick delivery and trusted quality.
Order your Edac Series306025500102 card edge connector today and enhance your electronics with reliable, low-profile PCB connection solutions.
