EDAC 307020520258 Datasheet & Stock

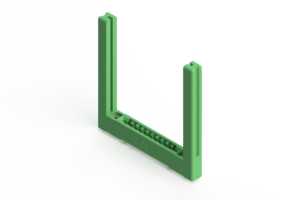

This is a 307 Series card edge connector featuring a .156-inch (3.96mm) contact spacing. It has 20 P.C. tail-type contacts with gold plating on the contact area for enhanced conductivity and corrosion resistance. The tails measure .046 inches (1.17mm) in width and .013 inches (0.33mm) in thickness, with a length of .213 inches (5.41mm). The connector is designed in a double row configuration, allowing connections to both sides of the daughter board. The green insulator includes .468-inch (11.89mm) offset card guides for proper alignment.
Frequently Asked Questions
Where can I buy EDAC 307020520258?
You can click on the BUY or RFQ button to purchase 307020520258 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 307020520258?
You can download the 307020520258 datasheet or visit the EDAC website for support.
Who is the manufacturer of 307020520258?
EDAC
