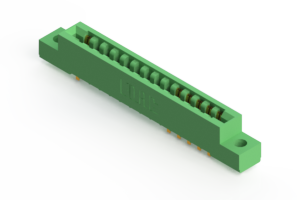

EDAC 307028520202 Card Edge Connector
The EDAC 307-028-520-202 is a card edge connector suitable for a variety of electronic applications. It offers a 0.156" (3.96mm) contact spacing and 0.200" (5.08mm) row spacing, accepting nominal 0.062" (1.57mm) thickness P.C. board. The connector features low-profile insulator body and provides termination options including P.C. tail, wire hole, wire wrap, 90° bends, and extender board bends. It is designed for single or dual row configurations and offers various mounting options, making it versatile for different system designs. RoHS compliant and UL certified, this connector ensures both performance and environmental responsibility.
EDAC 307028520202 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair when tested with .070” (1.78mm) thick gauge
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair when tested with .054” (1.37mm) thick gauge
