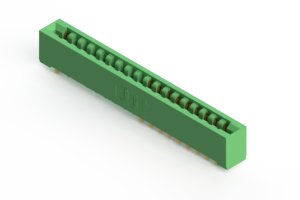

EDAC 307036558201 Card Edge Connector
The EDAC 307-036-558-201 is a versatile card edge connector designed for robust and reliable connections in electronic assemblies. It utilizes a 0.156" (3.96mm) contact spacing and 0.200" (5.08mm) row spacing, accommodating standard P.C. board thicknesses. The connector's low-profile insulator body and diverse termination options, including P.C. tail, wire hole, and 90-degree bends, make it suitable for a wide range of applications. It is RoHS compliant and UL certified, ensuring adherence to industry standards. Common applications include data transmission, signal routing, and power distribution in industrial equipment, telecommunications infrastructure, and consumer electronics.
EDAC 307036558201 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair
