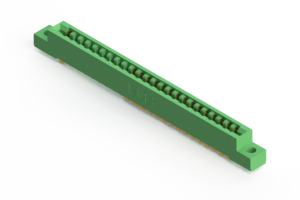

EDAC 307048500202 Card Edge Connector
The EDAC 307-048-500-202 is a card edge connector designed for reliable and secure connections in electronic systems. It boasts a 0.156" (3.96mm) contact spacing and 0.200" (5.08mm) row spacing, accepting nominal 0.062" (1.57mm) thickness P.C. board. The connector provides versatile termination options including P.C. tail, wire hole, wire wrap, 90° bends, and extender board bends. Its low-profile design and availability in single or dual row configurations make it suitable for a wide range of applications, from industrial automation to telecommunications equipment. The connector is RoHS compliant and UL certified, ensuring adherence to industry standards.
EDAC 307048500202 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair
