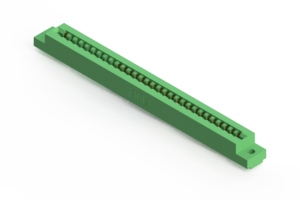

EDAC 307060500202 Card Edge Connector
The EDAC 307-060-500-202 is a card edge connector suitable for a variety of electronic applications. It features 0.156" (3.96mm) contact spacing and 0.200" (5.08mm) row spacing, designed to accept 0.062" (1.57mm) nominal thickness P.C. board. The connector offers versatile termination options including P.C. tail, wire hole, wire wrap, 90° bends, and extender board bends. It is available in single or dual row configurations and supports various mounting options, making it a flexible solution for connecting cards and boards in industrial and commercial equipment.
EDAC 307060500202 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair when tested with .070” (1.78mm) thick gauge
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair when tested with .054” (1.37mm) thick gauge
