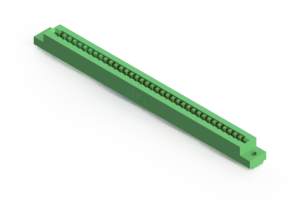

EDAC 307072500202 Card Edge Connector
This high-quality card edge connector features a 0.156-inch (3.96 mm) contact spacing, supporting up to 54 pins for versatile electronic connections. It accepts 0.054-inch (1.37 mm) thick printed circuit boards and offers various mounting options including through-hole and flush mount. The insulator body is made of UL 94V-0 thermoplastic polyester, providing flame resistance and durability. Contact material is copper alloy with gold and tin plating for excellent conductivity and corrosion resistance. With a current rating of 5 amps, dielectric withstanding voltage of 1800 V AC, and operating temperature from -40°C to +105°C, it ensures reliable performance in demanding applications.
EDAC 307072500202 Card Edge Connector Specifications:
- Contact Spacing: 0.156 inches (3.96 mm)
- Number of Pins: Up to 54
- Board Thickness: Supports 0.054 inch (1.37 mm)
- Insulator Material: UL 94V-0 thermoplastic polyester
- Contact Material: Copper alloy
- Contact Plating: Gold on mating area, Tin on tails, Nickel underplating
- Current Rating: 5 amps
- Dielectric Withstanding Voltage: 1800 V AC rms
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Tail Dimensions: 0.087 inches x 0.013 inches (2.21 mm x 0.33 mm)
- Tail Length: 0.282 inches (7.16 mm)
- Mounting Holes Diameter: 0.128 inches (3.25 mm)
Buy the Buy Edac Card Edge Connector Part Number 307072500202 Online
Enhance your electronic assemblies with this reliable card edge connector, featuring a 0.156-inch pitch, supporting up to 54 pins. Crafted from UL 94V-0 thermoplastic polyester, it offers flame resistance and durability. The copper alloy contacts, gold-tinned for corrosion resistance, provide excellent electrical performance with a current rating of 5 amps. Designed for easy mounting with multiple options, this connector withstands voltages up to 1800 V AC, operates effectively from -40°C to +105°C, and is RoHS compliant. Purchase online now for fast delivery and trusted quality.
Order your Edac Series307072500202 card edge connector today and ensure your electronic projects have the dependable quality and versatile mounting options they require.
Frequently Asked Questions
Where can I buy EDAC 307072500202?
You can click on the BUY or RFQ button to purchase 307072500202 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 307072500202?
You can download the 307072500202 datasheet or visit the EDAC website for support.
Who is the manufacturer of 307072500202?
EDAC
