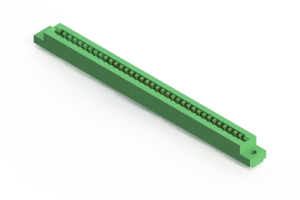

EDAC 307072522202 Card Edge Connector
This high-quality card edge connector features a 0.156-inch (3.96 mm) pitch, accommodating 72 contacts with versatile mounting options. It accepts P.C. boards up to 0.070 inches (1.78 mm) thick, suitable for various electronic applications. Constructed with UL 94V-0 thermoplastic polyester insulator and copper alloy contacts, it provides a current rating of 5 amps, contact resistance of 10 milliohms, and dielectric withstand voltage of 1800 V AC rms. Operating between -40°C and +105°C, it offers durable performance for secure and reliable connections.
EDAC 307072522202 Card Edge Connector Specifications:
- Contact spacing: 0.156 inches (3.96 mm)
- Number of contacts: 72
- Tail size: 0.046 x 0.013 inches (1.17 x 0.33 mm)
- Tail length: 0.358 inches (9.09 mm)
- Mounting holes diameter: 0.128 inches (3.25 mm)
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Current Rating: 5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
Buy the Buy Edac Card Edge Connector Part Number 307072522202 Online
Purchase the Edac Card Edge Connector online and experience premium quality and versatile mounting options for your PCB or electronic assembly needs. Designed with a 0.156-inch pitch and 72 contacts, this connector ensures secure and reliable electrical connections. Its durable construction with UL 94V-0 thermoplastic polyester insulator and copper alloy contacts guarantees long-lasting performance. Ideal for various electronic devices, it offers quick installation, UL certification, and operating temperatures from -40°C to +105°C. Get yours now for dependable project assembly.
Order your Edac Series307072522202 card edge connector today and ensure reliable, high-performance connections for your electronic projects.
Frequently Asked Questions
Where can I buy EDAC 307072522202?
You can click on the BUY or RFQ button to purchase 307072522202 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 307072522202?
You can download the 307072522202 datasheet or visit the EDAC website for support.
Who is the manufacturer of 307072522202?
EDAC
