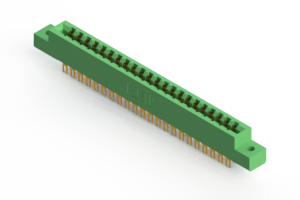

EDAC 315044500202 Card Edge Connector
The EDAC 315-044-500-202 is a card edge connector designed for applications requiring a 0.156" (3.96mm) contact spacing. It's characterized by its low-profile insulator body, dual-row configuration, and acceptance of 0.062" nominal thickness P.C. board. Termination options include P.C. tail, wire hole, and extender board bends, providing versatility in design. The connector's robust construction and various mounting options make it suitable for a wide range of industrial and commercial applications, including data acquisition, instrumentation, and telecommunications equipment. It is RoHS compliant, ensuring environmental responsibility.
EDAC 315044500202 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair
Buy the 315-044-500-202 EDAC Card Edge Connector | myMectronic
Purchase the EDAC 315-044-500-202 Card Edge Connector securely and efficiently for your project needs.
Buy Now
