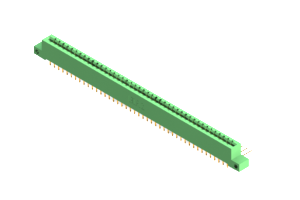

EDAC 337086558212 Card Edge Connector
The EDAC 337/387 series card edge connectors are designed for reliable card edge connections with a 0.156" (3.96mm) pitch. These connectors accept 0.062" nominal thickness P.C. board and provide a range of termination options including P.C. tail, wire hole, wire wrap, 90° bends, and extender board bends. They are suitable for applications requiring robust card edge connectivity and are RoHS compliant. Mounting options include flush or offset lugs, threaded inserts, and card guides.
EDAC 337086558212 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 3 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair when tested with .070” (1.78mm) thick gauge
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair when tested with .054” (1.37mm) thick gauge
Buy the 337-086-558-212 EDAC Card Edge Connector | myMectronic
Purchase the EDAC 337-086-558-212 Card Edge Connector securely online for your electronics projects.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 337086558212?
You can click on the BUY or RFQ button to purchase 337086558212 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 337086558212?
You can download the 337086558212 datasheet or visit the EDAC website for support.
Who is the manufacturer of 337086558212?
EDAC
