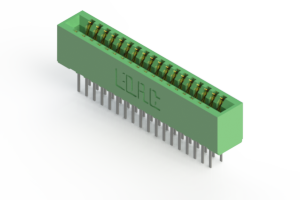

EDAC 341036522201 Card Edge Connector
This card edge connector with a 0.100 inch pitch offers reliable connections for PCBs up to 27 or 56 pins, suitable for various electronic assemblies. Constructed with UL 94V-0 thermoplastic polyester insulators and copper alloy contacts, it features gold and tin plating for enhanced durability. The connector supports current ratings up to 3 amps, with dielectric withstand voltage of 1200 V AC, and operates within -40°C to +105°C. Its versatile mounting options include through holes, floating eyelets, and threaded inserts, ensuring versatile installation in compact electronic designs.
EDAC 341036522201 Card Edge Connector Specifications:
- Pitch: 0.100 inch (2.54mm)
- Contacts: 36, up to 56 pins, with various contact configurations
- Contact Material: Copper alloy with gold plating on mating area and tin plating on tails
- Insulator Material: UL 94V-0 thermoplastic polyester
- Current Rating: 3 amps per contact
- Dielectric Withstanding Voltage: 1200 V AC between contacts
- Operating Temperature: -40°C to +105°C
- Contact Resistance: Max 10 milliohms
- Insulation Resistance: Minimum 5000 megohms
- Tail Lengths: Up to 0.375 inch (9.53mm)
- Mounting Options: Through holes, floating eyelets, threaded inserts, no lugs
Buy the Buy Industry Standard Card Edge Connector Part Number 341036522201 Online
Purchase the EDAC 341036522201 card edge connector online today to ensure your electronic projects benefit from durable construction, secure connections, and versatile mounting options. This connector supports up to 56 pins with a 0.100 inch pitch, suitable for various PCB configurations. With RoHS compliance and high-quality gold and tin plating, it offers long-lasting performance in demanding environments. Order now to streamline your assembly process, achieve reliable electrical connections, and improve your product's overall quality efficiently.
Buy EDAC 341036522201 now and experience unmatched reliability and performance for your electronic assembly needs.
Frequently Asked Questions
Where can I buy EDAC 341036522201?
You can click on the BUY or RFQ button to purchase 341036522201 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 341036522201?
You can download the 341036522201 datasheet or visit the EDAC website for support.
Who is the manufacturer of 341036522201?
EDAC
