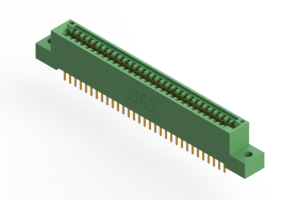

EDAC 345062520202 Card Edge Connector
This is a high-quality card edge connector with a 0.100 inches (2.54 mm) contact pitch, designed for reliable and efficient electronic connections. It features 62 contacts with gold and tin plating, ensuring excellent contact durability and corrosion resistance. The insulator is made from UL 94V-0 thermoplastic polyester, providing high temperature resistance up to +105°C. Mounting options include through-holes with 0.128 inches (3.25 mm) diameter for versatile installation. The connector's compact design and robust construction make it ideal for various electronic applications requiring secure PCI or card edge connections.
EDAC 345062520202 Card Edge Connector Specifications:
- Contact Pitch: 0.100 inches (2.54 mm)
- Number of Contacts: 62
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area and Tin on tails with Nickel underplating
- Tail Size: 0.030 x 0.018 inches (0.76 x 0.46 mm)
- Tail Length: 0.175 inches (4.45 mm)
- Current Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1200 V AC rms between contacts
- Insulation Resistance: Minimum 5000 megaohms
- Operating Temperature: -40°C to +105°C
- Mounting Holes: Diameter 0.128 inches (3.25 mm), with mounting options including through-holes
- Maximum Insertion Force: 16 oz (4.45 N) per contact
- Withdrawal Force: 1 oz (0.28 N) per contact
Buy the EDAC Series 345 Card Edge Connector: 345062520202
Enhance your electronic assemblies with this reliable card edge connector featuring 62 contacts at a 0.100-inch pitch. Made from UL 94V-0 thermoplastic polyester, it withstands temperatures up to 105°C. The connector includes gold and tin-plated copper contacts for durability, with a total length of 0.175 inches on the tails. It offers versatile mounting options with 0.128-inch diameter holes for secure installation, ideal for PCI cards, PCB connections, and other electronic applications requiring high-quality, stable contact performance. Order online today for fast delivery and excellent connectivity performance.
Buy EDAC 345062520202 high-quality card edge connector now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy EDAC 345062520202?
You can click on the BUY or RFQ button to purchase 345062520202 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 345062520202?
You can download the 345062520202 datasheet or visit the EDAC website for support.
Who is the manufacturer of 345062520202?
EDAC
