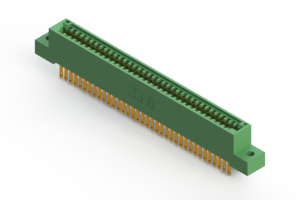

EDAC 345072500202 Card Edge Connector
This high-quality card edge connector offers a 0.100-inch contact spacing (2.54mm) and supports up to 72 contacts, making it ideal for compact electronics. It features a wire hole size of 0.050 x 0.025 inches (1.27 x 0.64 mm), with a tail length of 0.260 inches (6.60 mm) for secure soldering. The connector is available with multiple mounting options that include 0.128-inch (3.25mm) diameter mounting holes. Made from UL 94V-0 thermoplastic polyester, it is RoHS compliant and UL certified, ensuring safety and durability in various applications.
EDAC 345072500202 Card Edge Connector Specifications:
- Contact Spacing: 0.100 inches (2.54mm)
- Number of Contacts: 72
- Wire Hole Size: 0.050 x 0.025 inches (1.27 x 0.64 mm)
- Tail Length: 0.260 inches (6.60 mm)
- Mounting Holes: 0.128 inches (3.25 mm) diameter
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Operating Temperature: -40°C to +105°C
- Current Rating: Meets standard ratings for contact
- Contact Resistance: Maximum 10 milliohms
- Dielectric Withstanding Voltage: 1200 V AC rms between contacts
- Insulation Resistance: Minimum 5000 megaohms
- Certifications: RoHS compliant, UL certified
Buy the Edac 345072500202 – Reliable Card Edge Connector for Industrial Applications
Purchase the Edac card edge connector online today to ensure your electronic projects benefit from high-quality connections, robust durability, and versatile mounting options. This connector is ideal for compact, high-density applications, with a 0.100-inch pitch, 72 contacts, and UL certification, offering safety and performance. Equipped with multiple mounting holes and a precise tail length of 0.260 inches, it guarantees secure installation. Order now and upgrade your electronic system with trusted connectivity solutions designed for durability and efficiency in industrial and commercial applications.
Buy Edac 345072500202 now and experience unmatched reliability and performance in your electronic assembly projects.
Frequently Asked Questions
Where can I buy EDAC 345072500202?
You can click on the BUY or RFQ button to purchase 345072500202 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 345072500202?
You can download the 345072500202 datasheet or visit the EDAC website for support.
Who is the manufacturer of 345072500202?
EDAC
