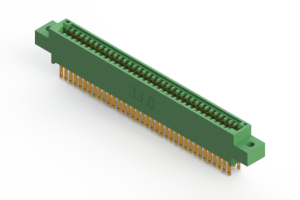

EDAC 345072500802 Card Edge Connector
This card edge connector features a 0.100-inch (2.54 mm) contact spacing with 72 contacts, suitable for high-density PCB connections. It has 0.050 x 0.025-inch wire holes, a tail length of 0.260 inches, and mounting holes of 0.128 inches diameter for secure attachment. Made from UL 94V-0 thermoplastic polyester, it offers high dielectric withstanding voltage of 1200 V AC rms, and operates within -40°C to +105°C. Its gold and tin-plated contacts ensure reliable connectivity for diverse electronic applications.
EDAC 345072500802 Card Edge Connector Specifications:
- Contact spacing: 0.100 inches (2.54 mm)
- Total contacts: 72
- Wire hole size: 0.050 x 0.025 inches (1.27 x 0.64 mm)
- Tail length: 0.260 inches (6.60 mm)
- Mounting hole diameter: 0.128 inches (3.25 mm)
- Insulator Material: UL 94V-0 thermoplastic polyester
- Contact Material: Copper alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Current Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1200 V AC rms between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) max per contact pair with 0.070 inches gauge
- Withdrawal Force: 1 oz (0.28 N) min per contact pair with 0.054 inches gauge
