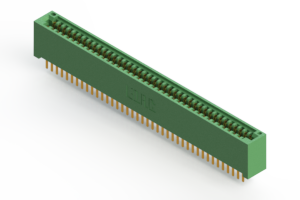

EDAC 345080520201 Card Edge Connector
The EDAC 345-080-520-201 card edge connector is a versatile component designed for connecting printed circuit boards. It boasts a 0.100” (2.54mm) contact spacing and 0.200” (5.08mm) row spacing, accepting 0.062” nominal thickness P.C. board. The connector offers a variety of termination options including P.C. tail, wire wrap, and bends, along with single or dual row configurations. Its robust design and multiple mounting options make it suitable for a wide range of industrial applications, including data acquisition, instrumentation, and automation systems.
EDAC 345080520201 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 3 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1200 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair when tested with .070” (1.78mm) thick gauge
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair when tested with .054” (1.37mm) thick gauge
