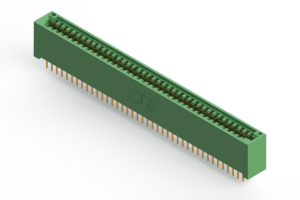

EDAC 345080524201 Card Edge Connector
The EDAC 345-080-524-201 is a versatile card edge connector designed for applications requiring precise component spacing and reliable connections. It boasts a 0.100" (2.54mm) contact spacing and 0.200" (5.08mm) row spacing, accommodating 0.062" nominal thickness P.C. board. The connector offers a range of termination options, including P.C. tail, wire wrap, and bend configurations, catering to diverse assembly needs. Its robust design and multiple mounting options make it suitable for various industrial and commercial applications.
EDAC 345080524201 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 3 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1200 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair when tested with .070” (1.78mm) thick gauge
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair when tested with .054” (1.37mm) thick gauge
Buy the 345-080-524-201 EDAC Card Edge Connector | myMectronic
Purchase the EDAC 345-080-524-201 Card Edge Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 345080524201?
You can click on the BUY or RFQ button to purchase 345080524201 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 345080524201?
You can download the 345080524201 datasheet or visit the EDAC website for support.
Who is the manufacturer of 345080524201?
EDAC
