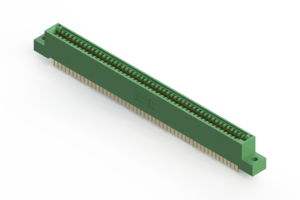

EDAC 345100524202 Card Edge Connector
This card edge connector features a 0.100-inch (2.54 mm) pitch with high-profile insulator body at 0.600 inches (15.24 mm). It offers configurations for single or dual rows, accepting 0.062-inch (1.57 mm) thick P.C. boards. Made of UL 94V-0 thermoplastic polyester, it has copper alloy contacts with gold and tin plating, supporting up to 3 amps, with a dielectric withstand voltage of 1200 V AC RMS. The connector is RoHS compliant, with various mounting options, including flush or offset lugs, and includes features such as wire wrap positioning holes and pre-assembled card guides for easy installation.
EDAC 345100524202 Card Edge Connector Specifications:
- Pitch: 0.100 inches (2.54 mm)
- Contact Rows: Single or dual row configurations
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Current Rating: 3 amps
- Dielectric Withstanding Voltage: 1200 V AC rms
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Flammability: UL 94V-0 Thermoplastic Polyester
- Body Height: 0.600 inches (15.24 mm)
- Tail Sizes and Lengths: 0.018 inches (0.46 mm) square, 0.175 inches (4.45 mm) long
- Mounting: Holes with diameter 0.128 inches (3.25 mm), various mounting options including flush or offset lugs
- RoHS Compliant: Yes
- UL Certification: Yes
Buy the Edac 345–395 Series – Reliable Card Edge Connectors for Industrial Applications
Purchase the Edac card edge connector online today—engineered for reliable performance in industrial electronics. Featuring 0.100-inch pitch, support for multiple configurations, and RoHS compliance, this connector ensures secure, durable connections. It fits PC boards up to 0.062 inches thick and offers versatile mounting options, including flush or offset lugs. With pre-assembled guides, wire wrap holes, and high-quality materials like copper alloy with gold and tin plating, this connector provides excellent electrical performance and ease of installation for professional electronics assembly.
Get Edac 345100524202 today—built for precision, versatility, and long-lasting durability in your electronic assemblies.
Frequently Asked Questions
Where can I buy EDAC 345100524202?
You can click on the BUY or RFQ button to purchase 345100524202 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 345100524202?
You can download the 345100524202 datasheet or visit the EDAC website for support.
Who is the manufacturer of 345100524202?
EDAC
