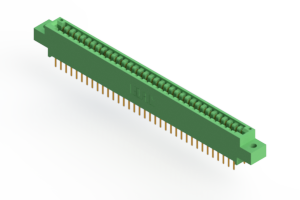

EDAC 346070520802 Card Edge Connector
This card edge connector features a 0.125-inch (3.175mm) pitch with 70 contacts and accepts 0.062-inch (1.57mm) thick P.C. boards. It has a high insulator body height of 0.600 inches (15.24mm), and contact options include P.C. tail, wire wrap, 90° bends, and extender board bends. Suitable for single or dual-row configurations, it supports various mounting options like flush or offset lugs, accepts polarizing keys, and is RoHS compliant and UL certified, making it ideal for high-density electronic applications.
EDAC 346070520802 Card Edge Connector Specifications:
- Contact Spacing: 0.125 inches (3.175mm)
- Number of Contacts: 70
- P.C. Tail Size: 0.025 inches square (0.64mm squared)
- Tail Length: 0.175 inches (4.45mm)
- Mounting Hole Diameter: 0.128 inches (3.25mm)
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Current Rating: 3 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1500 V AC rms
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N)
- Withdrawal Force: 1 oz (0.28 N)
