EDAC 346072500802 Card Edge Connector
This card edge connector features a 0.125-inch pitch with 72 contacts, suitable for interfacing with PC boards. It has a high-profile insulator body at 0.600 inches, with various contact termination options including P.C. tail and wire wrap. Designed for reliable electrical performance, it boasts gold and tin plating for contact durability, and a dielectric withstand voltage of 1500 V AC rms. Mounting options include through holes and offset card guides, making it ideal for industrial electronic assemblies and complex connection requirements.
EDAC 346072500802 Card Edge Connector Specifications:
- Contact Spacing: 0.125 inches (3.175 mm)
- Number of Contacts: 72
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Mounting Holes: 0.128 inches (3.25 mm) diameter
- Wire Hole Size: 0.050 x 0.025 inches (1.27 x 0.64 mm)
- Tail Length: 0.260 inches (6.60 mm)
- Dielectric Withstanding Voltage: 1500 V AC rms between adjacent contacts
- Contact Resistance: 10 milliohms maximum
- Operating Temperature Range: -40°C to +105°C
- Maximum Insertion Force: 16 oz (4.45 N) per contact
- Minimum Withdrawal Force: 1 oz (0.28 N) per contact
- RoHS Compliant & UL Certified

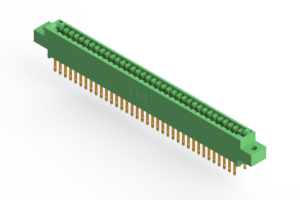

Buy the Buy EDAC Card Edge Connector Part Number 346072500802 Online
Order the EDAC 346072500802 card edge connector online today for your electronic projects. With 72 contacts, 0.125-inch pitch, and flexible mounting options, this connector ensures reliable connections in industrial, automation, and instrumentation applications. Manufactured with high-quality copper alloy contacts, gold and tin plating for durability, and UL certification, it’s designed for consistent performance across temperature ranges from -40°C to +105°C. Easy to install and RoHS compliant, upgrade your device assembly with this trusted component now.
Buy EDAC 346072500802 now and experience unmatched reliability and performance for your PCB connection needs with versatile mounting options and durable contacts.
