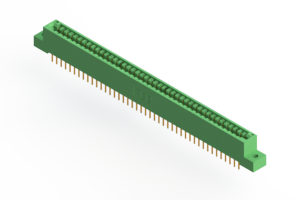

EDAC 346086520202 Card Edge Connector

This card edge connector features a 0.125-inch pitch (3.18mm) with 86 contacts, suitable for various PCB applications. It accepts 0.062-inch (1.57mm) thick PCBs and offers options like single or dual row configurations. Made from UL 94V-0 thermoplastic polyester, it has gold-plated contacts with Tin on tails, providing reliable electrical performance. The connector supports multiple mounting options, including through holes of 0.128 inches (3.25mm) in diameter, and features a high-profile insulator body at 0.600 inches (15.24mm). It’s RoHS compliant and UL certified, ideal for industrial, automation, and control systems.

View 346086520202Datasheet [pdf]

Buy the Edac Series 346 Card Edge Connector: 86 Contacts, 0.125 Inch Pitch

Enhance your electronic assemblies with the Edac Series 346 Card Edge Connector, featuring 86 contacts, a 0.125-inch pitch, and versatile mounting options. This high-quality connector is made from UL 94V-0 thermoplastic polyester, with gold-plated contacts for optimal electrical performance and durability. It supports PCB thickness of 0.062 inches and includes through-hole mounting with 0.128-inch diameter holes. RoHS compliant and UL certified, this connector is ideal for industrial, automation, and control systems requiring reliable connection, high voltage capability, and compliance with industry standards.

Order your Edac Series 346 Card Edge Connector today and give your PCB projects the dependable quality they deserve with reliable mounting options and RoHS compliance.
