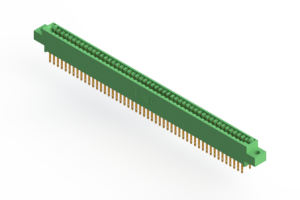

EDAC 346100500804 Card Edge Connector
This card edge connector features a 0.125-inch (3.175 mm) pitch and accepts PC boards up to 0.062 inches (1.57 mm) thick. It has a high-profile insulator body of 0.600 inches (15.24 mm) height, with various contact termination options including P.C. tail, wire wrap, and extender bends. Designed for dual or single-row configurations, it offers multiple mounting choices such as flush or offset lugs. RoHS compliant and UL certified, it provides excellent electrical performance with a maximum contact resistance of 10 milliohms and dielectric withstand voltage of 1500 V AC RMS.
EDAC 346100500804 Card Edge Connector Specifications:
- Contact Spacing: 0.125 inches (3.175 mm)
- Row Spacing: 0.200 inches (5.08 mm)
- Accepts PC boards up to 0.062 inches (1.57 mm) thick
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Current Rating: Not specified
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1500 V AC rms between adjacent contacts
- Insulation Resistance: Minimum 5000 megaohms
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) max per contact pair
- Withdrawal Force: 1 oz (0.28 N) min per contact pair
- Mounting Holes Diameter: 0.156 inches (3.96 mm)
- RoHS Compliant & UL Certified
