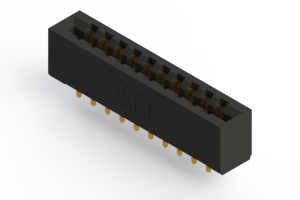

EDAC 355020521201 Card Edge Connector
This is a robust card edge connector with a contact pitch of 0.156 inches (3.96 mm) and row spacing of 0.140 inches (3.56 mm). It supports 20 contacts and accepts PC boards up to 0.062 inches (1.57 mm) thick. Crafted from UL 94V-0 thermoplastic polyester, it features gold and tin plating on contacts for corrosion resistance, with a maximum contact resistance of 10 milliohms. Designed for temperatures from -40°C to +105°C, it offers versatile mounting options, including no lugs or mounting holes, making it ideal for various electronic applications.
EDAC 355020521201 Card Edge Connector Specifications:
- Contact pitch: 0.156 inches (3.96 mm)
- Row spacing: 0.140 inches (3.56 mm)
- Contact material: Copper alloy with gold plating and tin on tails
- Contact resistance: 10 milliohms maximum
- Dielectric withstand voltage: 1800 V AC rms between contacts
- Insulation resistance: 5000 megaohms minimum
- Operating temperature: -40°C to +105°C
- Material: UL 94V-0 thermoplastic polyester
- Tail size: 0.046 inches x 0.015 inches (1.17 mm x 0.38 mm)
- Tail length: 0.125 inches (3.18 mm)
- Number of contacts: 20
- Mounting options: No mounting lug, mounting holes, floating eyelets, offset or in-line card guides
- RoHS compliant, UL certified
Buy the EDAC Series 305 Card Edge Connectors: 355020521201
Secure your electronic projects with the EDAC Series 355020521201 card edge connector offering 20 contacts at a 0.156 inch pitch. Designed with high-quality copper alloy contacts, gold and tin plating, and a temperature rating of -40°C to +105°C, it guarantees durability and optimal performance. Its flexible mounting options, including no lugs, mounting holes, and offset guides, make it suitable for various applications. Easy to install and RoHS compliant, this connector ensures reliable connections for your PCBs, maximizing efficiency and safety.
Buy EDAC Series 355020521201 card edge connector now and experience unmatched reliability, versatile mounting options, and high-performance connectivity.
Frequently Asked Questions
Where can I buy EDAC 355020521201?
You can click on the BUY or RFQ button to purchase 355020521201 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 355020521201?
You can download the 355020521201 datasheet or visit the EDAC website for support.
Who is the manufacturer of 355020521201?
EDAC
