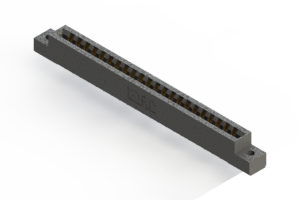

EDAC 356022521102 Card Edge Connector
This card edge connector features a contact spacing of 0.156 inches (3.96 mm) and 22 contacts. It has a tail size of 0.037 x 0.015 inches (0.94 x 0.38 mm) with a tail length of 0.125 inches (3.18 mm). The connector includes mounting holes with a diameter of 0.128 inches (3.25 mm) for secure attachment and accepts 0.062-inch (1.57 mm) nominal thick P.C. boards. Made from UL 94V-0 thermoplastic polyester, it is RoHS compliant, UL certified, and suitable for various industrial applications requiring reliable electrical connections.
EDAC 356022521102 Card Edge Connector Specifications:
- Contact spacing: 0.156 inches (3.96 mm)
- Number of contacts: 22
- Tail size: 0.037 x 0.015 inches (0.94 x 0.38 mm)
- Tail length: 0.125 inches (3.18 mm)
- Mounting hole diameter: 0.128 inches (3.25 mm)
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Current Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair
- RoHS and UL Certified
- Accepts 0.062” (1.57mm) nominal thickness P.C. board
Buy the Edac 356022521102 – Reliable Card Edge Connectors for Industrial Applications
Purchase the Edac 356022521102 series card edge connector online now for dependable electrical connections in industrial and electronic applications. This connector features a 0.156-inch pitch with 22 contacts, ensuring compatibility with 1.57mm thick P.C. boards. Its UL and RoHS compliance guarantees safety and environmental standards. The connector’s mounting holes and robust contact plating facilitate easy installation and long-term performance. Ideal for boards requiring precise contact spacing and reliable signal transfer, this product supports your industrial automation, instrumentation, and control system needs effectively.
Order your Edac Series 356022521102 card edge connector today and ensure reliable, high-quality connections for your industrial projects.
Frequently Asked Questions
Where can I buy EDAC 356022521102?
You can click on the BUY or RFQ button to purchase 356022521102 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 356022521102?
You can download the 356022521102 datasheet or visit the EDAC website for support.
Who is the manufacturer of 356022521102?
EDAC
