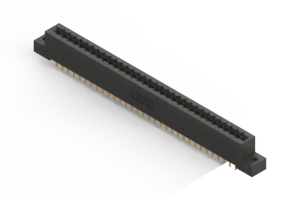

EDAC 379064521202 Card Edge Connector
The EDAC 379 series card edge connector is designed for reliable connections in a variety of applications. With a 0.150" contact spacing and 0.200" row spacing, it accommodates 0.062" thick printed circuit boards. The connector features a high-profile insulator body, offering robust support and insulation. Termination options include P.C. tail, wire wrap, and extender board bends, providing flexibility in design. Available mounting options include threaded inserts and floating eyelets, catering to diverse installation requirements. RoHS compliant, this connector ensures environmental responsibility.
EDAC 379064521202 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester, Black Color
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 3 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair
- Contact Code 555 Bend: 0.245(6.22)
- Contact Code 556 Bend: 0.170(4.32)
- Contact Code 560 Bend: 0.375(9.53)
