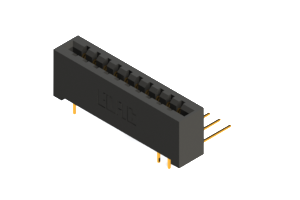

EDAC 387020558201 Card Edge Connector
The EDAC 387 series card edge connector is designed for reliable card edge connections with a 0.156" (3.96mm) pitch. It accommodates 0.062" (1.57mm) thick P.C. boards and provides a range of termination options including P.C. tail, wire hole, wire wrap, and 90° bends. Available in single or dual row configurations with flush or offset mounting lugs, this connector is suitable for a variety of industrial applications requiring secure and robust card edge connectivity. RoHS compliant and UL certified for enhanced safety and environmental responsibility.
EDAC 387020558201 Card Edge Connector Specifications:
- Contact Spacing: 0.156" (3.96mm)
- Row Spacing: 0.200" (5.08mm)
- P.C. Board Thickness: 0.062" (1.57mm) nominal
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating
- Current Rating: 3 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms at sea level
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair
Buy the 387-020-558-201 EDAC Card Edge Connector | myMectronic
Purchase the EDAC 387-020-558-201 Card Edge Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 387020558201?
You can click on the BUY or RFQ button to purchase 387020558201 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 387020558201?
You can download the 387020558201 datasheet or visit the EDAC website for support.
Who is the manufacturer of 387020558201?
EDAC
