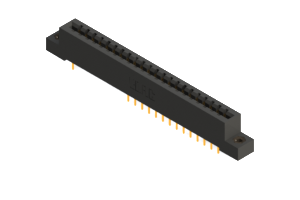

EDAC 387044540208 Card Edge Connector
The EDAC 387 series card edge connector is designed for robust and reliable card edge connections. With a 0.156" (3.96mm) contact spacing and 0.200" (5.08mm) row spacing, it accommodates 0.062" nominal thickness P.C. board. The connector provides high-profile insulator bodies, multiple termination options (P.C. tail, wire hole, wire wrap, 90° bends, extender board bends), and various mounting options (flush or offset lugs). It is RoHS compliant and suitable for a wide range of industrial applications requiring secure card edge connectivity.
EDAC 387044540208 Card Edge Connector Specifications:
- contact_spacing: 0.156" (3.96mm)
- row_spacing: 0.200" (5.08mm)
- pc_board_thickness: 0.062" (1.57mm) nominal
- insulator_material: UL 94V-0 Thermoplastic Polyester
- contact_material: Copper Alloy
- contact_plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating
- current_rating: 3 amps
- contact_resistance: 10 milliohms maximum
- dielectric_withstanding_voltage: 1800 V AC rms at sea level
- insulation_resistance: 5000 megaohms minimum
- operating_temperature: -40°C to +105°C
- insertion_force: 16 oz (4.45 N) maximum per contact pair
- withdrawal_force: 1 oz (0.28 N) minimum per contact pair
