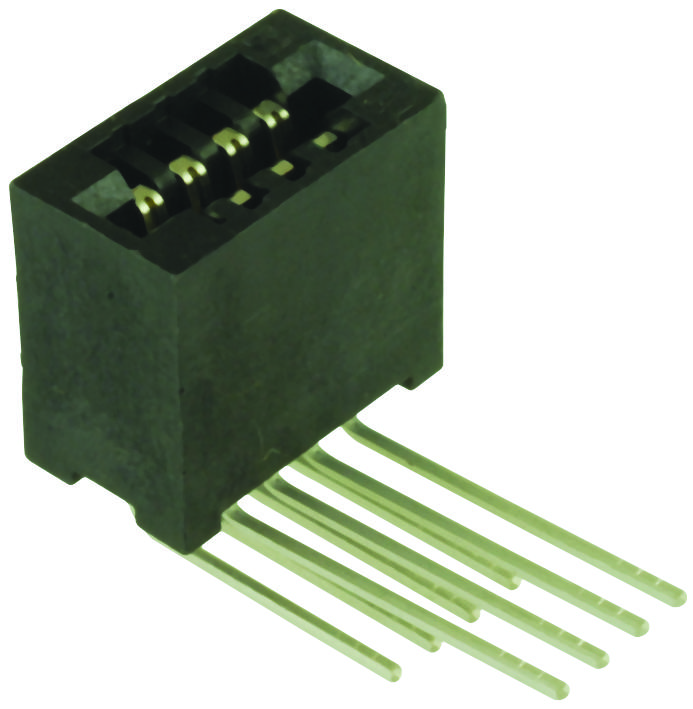

EDAC 392008559201 Card Edge Connector
This high-quality card edge connector features a 0.100-inch pitch (2.54 mm) with dual row configurations, suitable for industrial use. It accepts .062-inch (1.57 mm) thick PC boards and offers versatile contact termination options including P.C. Tail, Wire Wrap, and 90-degree bends. Made from UL 94V-0 thermoplastic polyester, its copper alloy contacts are gold and tin plated, ensuring low contact resistance. It provides a 3A current rating, dielectric withstand voltage of 1200 VAC rms, and operates between ~40°C to +105°C. Designed for reliable mounting with options for flush or offset lugs, it's RoHS compliant and UL certified.
EDAC 392008559201 Card Edge Connector Specifications:
- Contact spacing: 0.100 inches (2.54 mm)
- Row spacing: 0.200 inches (5.08 mm)
- Board Thickness: accepts .062 inches (1.57 mm)
- Insulator Material: UL 94V-0 thermoplastic polyester
- Contact Material: Copper alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Current Rating: 3 Amperes
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstand Voltage: 1200 VAC rms at sea level
- Insulation Resistance: 5000 Megaohms minimum
- Operating Temperature: ~40°C to +105°C
- Mounting Options: flush or offset lugs, accepts polarizing keys
- Number of contacts: 8 (example model)
- Applicable for wire wrap, P.C. tail, right-angle configurations
- RoHS compliant & UL Certified
Buy the EHC 392008559201 – Reliable Card Edge Connector for Industrial Applications
Order the EHC card edge connector online today and enhance your electronic projects with reliable, high-quality connectivity. Designed for industrial applications, it features a 0.100-inch pitch and dual-row options, with versatile termination methods including P.C. Tail and Wire Wrap. Its UL and RoHS compliance ensure safety and environmental standards, while the durable materials guarantee long-lasting performance. Perfect for assembling robust, high-performance electronic systems, this connector provides an easy-to-install solution for PCB connections, making it an essential component for engineers and technicians alike.
Buy EHC 392008559201 now and experience unmatched reliability and performance in your electronic assemblies.
