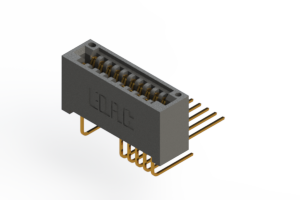

EDAC 395020558201 Card Edge Connector
The EDAC 395 series card edge connector is designed for reliable connections in a variety of applications. Featuring a 0.100" (2.54mm) contact spacing and 0.200" (5.08mm) row spacing, this connector accepts 0.062" (1.57mm) nominal thickness P.C. board. It offers flexibility with contact termination options including P.C. tail, wire wrap, 90-degree bends, and extender board bends, along with single or dual row configurations and various mounting options. Its robust design and RoHS compliance make it suitable for industrial and commercial applications.
EDAC 395020558201 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 3 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1200 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair when tested with .070” (1.78mm) thick gauge
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair when tested with .054” (1.37mm) thick gauge
